# Setup document
source(here::here("code", "setup.R"))

# Function dependencies
invisible(drake::readd(download_link))

Introduction

In this document we are going to run through the example analysis for the COMUNET package and have a look at the output it produces. More information about COMUNET can be found at https://github.com/ScialdoneLab/COMUNET.

library("COMUNET")

Chunk time: 2.07 secs

1 Input

The COMUNET package performs downstream analysis based on the results of any algorithm which produces a matrix of weights representing the strength of interactions between two cell type from a ligand-receptor pair.

For their tutorials the authors have used the output produced by CellPhoneDB.

1.1 CellPhoneDB database

We require two of the files which make up the CellPhoneDB database.

1.1.1 complex_input.csv

This file contains information about the complexes in the CellPhoneDB database.

complex_input <- read_csv(
    fs::path(
        PATHS$cellphonedb_in,
        "database_v2.0.0",
        "data",
        "complex_input.csv"
    ),
    col_types = cols(
        complex_name       = col_character(),
        uniprot_1          = col_character(),
        uniprot_2          = col_character(),
        uniprot_3          = col_character(),
        uniprot_4          = col_logical(),
        transmembrane      = col_logical(),
        peripheral         = col_logical(),
        secreted           = col_logical(),
        secreted_desc      = col_character(),
        secreted_highlight = col_logical(),
        receptor           = col_logical(),
        receptor_desc      = col_character(),
        integrin           = col_logical(),
        other              = col_logical(),
        other_desc         = col_character(),
        pdb_id             = col_character(),
        pdb_structure      = col_character(),
        stoichiometry      = col_character(),
        comments_complex   = col_character()
    )
) %>%
    mutate(complex_name = gsub("_" , " " , complex_name))

skim(complex_input)

Data summary

Name	complex_input
Number of rows	112
Number of columns	19
_______________________
Column type frequency:
character	11
logical	8
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
complex_name	0	1.00	4	24	0	112	0
uniprot_1	0	1.00	6	6	0	64	0
uniprot_2	0	1.00	6	6	0	74	0
uniprot_3	106	0.05	6	6	0	6	0
secreted_desc	106	0.05	4	44	0	5	0
receptor_desc	63	0.44	18	45	0	16	0
other_desc	110	0.02	9	51	0	2	0
pdb_id	90	0.20	4	4	0	22	0
pdb_structure	0	1.00	4	7	0	3	0
stoichiometry	91	0.19	9	30	0	21	0
comments_complex	36	0.68	14	176	0	42	0

Variable type: logical

skim_variable	n_missing	complete_rate	mean	count
uniprot_4	112	0	NaN	:
transmembrane	0	1	0.94	TRU: 105, FAL: 7
peripheral	0	1	0.01	FAL: 111, TRU: 1
secreted	0	1	0.05	FAL: 106, TRU: 6
secreted_highlight	0	1	0.05	FAL: 106, TRU: 6
receptor	0	1	0.73	TRU: 82, FAL: 30
integrin	0	1	0.21	FAL: 89, TRU: 23
other	0	1	0.02	FAL: 110, TRU: 2

Chunk time: 0.19 secs

1.1.2 gene_input.csv

This file contains information about the genes in the CellPhoneDB database.

gene_input <- read_csv(
    fs::path(
        PATHS$cellphonedb_in,
        "database_v2.0.0",
        "data",
        "gene_input.csv"
    ),
    col_types = cols(
        gene_name   = col_character(),
        uniprot     = col_character(),
        hgnc_symbol = col_character(),
        ensembl     = col_character()
    )
)

skim(gene_input)

Data summary

Name	gene_input
Number of rows	1252
Number of columns	4
_______________________
Column type frequency:
character	4
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
gene_name	0	1	2	9	0	979	0
uniprot	0	1	4	7	0	978	0
hgnc_symbol	1	1	2	9	0	979	0
ensembl	0	1	15	15	0	1251	0

Chunk time: 0.06 secs

1.2 CellPhoneDB output

Output files from running CellPhoneDB

1.2.1 significant_means.txt

Information about each ligand-receptor pair as well as scores for each pair of cell types calculated by CellPhoneDB.

means <- read_tsv(
    fs::path(PATHS$COMUNET_in, "mouse", "significant_means.txt"),
    col_types = cols(
        .default = col_double(),
        id_cp_interaction   = col_character(),
        interacting_pair    = col_character(),
        partner_a           = col_character(),
        partner_b           = col_character(),
        gene_a              = col_character(),
        gene_b              = col_character(),
        secreted            = col_logical(),
        receptor_a          = col_logical(),
        receptor_b          = col_logical(),
        annotation_strategy = col_character(),
        is_integrin         = col_logical()
    )
)

skim(means)

Data summary

Name	means
Number of rows	403
Number of columns	37
_______________________
Column type frequency:
character	7
logical	4
numeric	26
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
id_cp_interaction	0	1.00	15	15	0	403	0
interacting_pair	0	1.00	8	24	0	402	0
partner_a	0	1.00	12	26	0	196	0
partner_b	0	1.00	13	25	0	195	0
gene_a	36	0.91	2	8	0	181	0
gene_b	60	0.85	3	9	0	178	0
annotation_strategy	0	1.00	3	33	0	19	0

Variable type: logical

skim_variable	n_missing	complete_rate	mean	count
secreted	0	1	0.80	TRU: 323, FAL: 80
receptor_a	0	1	0.43	FAL: 231, TRU: 172
receptor_b	0	1	0.51	TRU: 204, FAL: 199
is_integrin	0	1	0.13	FAL: 350, TRU: 53

Variable type: numeric

skim_variable	n_missing	complete_rate	mean	sd	p0	p25	p50	p75	p100	hist
rank	0	1.00	1.04	0.69	0.04	0.20	1.60	1.60	1.60	▅▁▁▁▇
EPI|EPI	385	0.04	1.43	2.13	0.26	0.36	0.54	1.53	7.12	▇▂▁▁▁
EPI|Mes	367	0.09	0.84	1.15	0.22	0.31	0.60	0.89	7.23	▇▁▁▁▁
EPI|TE	382	0.05	1.20	1.44	0.27	0.56	0.92	1.33	7.09	▇▁▁▁▁
EPI|emVE	368	0.09	1.12	1.58	0.19	0.49	0.65	0.99	7.26	▇▁▁▁▁
EPI|exVE	377	0.06	1.28	1.77	0.17	0.44	0.76	1.20	7.10	▇▁▁▁▁
Mes|EPI	363	0.10	1.36	1.82	0.22	0.42	0.52	0.95	6.93	▇▁▁▁▁
Mes|Mes	330	0.18	0.89	1.29	0.15	0.37	0.50	0.74	7.03	▇▁▁▁▁
Mes|TE	369	0.08	1.37	1.66	0.21	0.45	0.73	1.28	6.89	▇▁▁▁▁
Mes|emVE	353	0.12	1.05	1.50	0.20	0.44	0.62	0.82	7.07	▇▁▁▁▁
Mes|exVE	359	0.11	1.09	1.58	0.22	0.40	0.63	0.85	6.91	▇▁▁▁▁
TE|EPI	380	0.06	0.75	0.52	0.26	0.38	0.55	0.98	2.01	▇▂▁▁▁
TE|Mes	362	0.10	0.70	0.40	0.20	0.32	0.63	0.90	1.84	▇▃▃▁▁
TE|TE	381	0.05	0.70	0.34	0.19	0.50	0.65	0.96	1.36	▆▇▂▇▂
TE|emVE	366	0.09	0.75	0.42	0.20	0.49	0.63	0.91	2.00	▇▇▂▁▁
TE|exVE	378	0.06	0.70	0.36	0.18	0.42	0.62	0.98	1.36	▇▇▃▆▅
emVE|EPI	374	0.07	2.90	9.14	0.18	0.39	0.85	1.28	49.69	▇▁▁▁▁
emVE|Mes	353	0.12	0.79	1.17	0.16	0.33	0.50	0.73	6.93	▇▁▁▁▁
emVE|TE	380	0.06	3.22	10.20	0.16	0.62	0.77	1.04	49.62	▇▁▁▁▁
emVE|emVE	361	0.10	2.19	7.62	0.17	0.51	0.72	1.00	49.64	▇▁▁▁▁
emVE|exVE	375	0.07	3.00	9.29	0.22	0.48	0.89	1.36	49.68	▇▁▁▁▁
exVE|EPI	373	0.07	2.66	9.02	0.26	0.40	0.64	1.26	50.14	▇▁▁▁▁
exVE|Mes	360	0.11	0.83	0.84	0.23	0.34	0.55	0.94	5.01	▇▁▁▁▁
exVE|TE	385	0.04	3.95	11.57	0.25	0.58	0.84	1.89	50.08	▇▁▁▁▁
exVE|emVE	368	0.09	2.31	8.36	0.16	0.52	0.66	1.06	50.09	▇▁▁▁▁
exVE|exVE	383	0.05	3.56	11.03	0.20	0.42	0.69	1.30	50.13	▇▁▁▁▁

Chunk time: 0.27 secs

2 Convert CellPhoneDB output

The first step is to convert the output from CellPhoneDB into the format used by COMUNET. Instead of the single matrix provided by CellPhoneDB, COMUNET needs a matrix for each ligand-receptor pair where the rows are sending cell types and the columns are receiving cell types.

prepped_means <- means %>%
    as.data.frame() %>%
    distinct(interacting_pair, .keep_all = TRUE)
rownames(prepped_means) <- prepped_means$interacting_pair

interactions <- convert_CellPhoneDB_output(
    CellPhoneDB_output = prepped_means,
    complex_input      = complex_input,
    gene_input         = gene_input
)

Chunk time: 1.44 secs

The result of the conversion function is a list with 3 items.

2.1 Weight array

The first item is a three-dimensional array with the weights calculated by CellPhoneDB. There are 162 of these matrices, here is an example of the first one.

pander(interactions$weight_array[, , 1])

	EPI	Mes	TE	emVE	exVE
EPI	0	0	0	0	0
Mes	0	0	0	0.438	0
TE	0	0	0	0	0
emVE	0	0	0	0	0
exVE	0	0	0	0	0

Chunk time: 0.01 secs

2.2 Ligand-receptor pairs

The second item contains information about ligand-receptor pairs.

skim(interactions$ligand_receptor_pair_df)

Data summary

Name	interactions$ligand_recep…
Number of rows	162
Number of columns	5
_______________________
Column type frequency:
character	5
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
pair	0	1	8	24	0	162	0
ligand	0	1	3	7	0	71	0
ligand_complex_composition	0	1	3	7	0	71	0
receptor	0	1	3	18	0	88	0
receptor_complex_composition	0	1	3	19	0	88	0

Chunk time: 0.05 secs

2.3 Nodes

The final item is a vector of the names of all the cell types: EPI, Mes, TE, emVE, exVE

3 Clustering interaction partners

The aim of this analysis is to find ligand-receptor pairs that interact in similar ways. This is done by clustering the communication graphs of the ligand-receptor pairs.

lrp_clusters <- lrp_clustering(
    weight_array            = interactions$weight_array,
    ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
    nodes                   = interactions$nodes
)

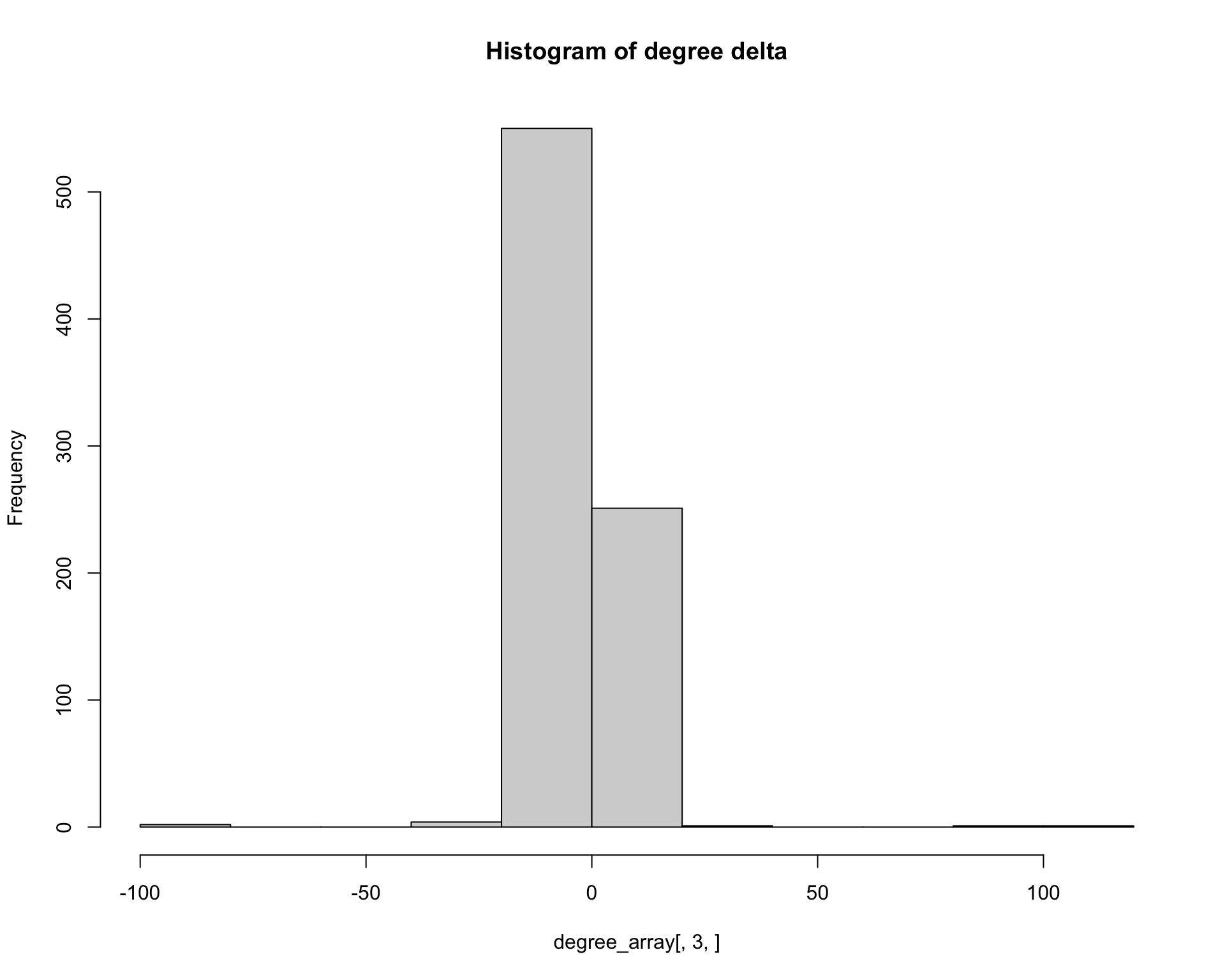

Past versions of clustering-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Past versions of clustering-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

 ..cutHeight not given, setting it to 0.986  ===>  99% of the (truncated) height range in dendro.
 ..done.
[1] "Warning: some graphs are not assigned to any cluster"
[1] "We have 8 clusters"

Chunk time: 2.49 secs

3.1 Output

This step produces a list with 3 items.

3.1.1 Dissimilarity matrix

Matrix with distances between each ligand-receptor pair. Here is a small example.

pander(lrp_clusters$dissim_matrix[1:5, 1:5])

	WNT5A:FZD6	NRG1:NETO2	EFNB1:EPHB2	EPHB2:EFNB3	WNT2:FZD4
WNT5A:FZD6	0	1	1	1	1
NRG1:NETO2	1	0	1	1	1
EFNB1:EPHB2	1	1	0	1	1
EPHB2:EFNB3	1	1	1	0	1
WNT2:FZD4	1	1	1	1	0

Chunk time: 0.01 secs

3.1.2 Clusters

Cluster assignments for each ligand-receptor pair.

kable(head(lrp_clusters$clusters))

	x
WNT5A:FZD6	4
NRG1:NETO2	2
EFNB1:EPHB2	2
EPHB2:EFNB3	1
WNT2:FZD4	4
VEGFA:EPHB2	2

Chunk time: 0 secs

3.1.3 Cluster weight array

The average interaction weights between cell types by cluster. There are 8 of these matrices, here is an example of the first one.

pander(lrp_clusters$weight_array_by_cluster[, , 1])

	EPI	Mes	TE	emVE	exVE
EPI	0.09733	0.1426	0.09956	0.2001	0.1412
Mes	0.2163	0.2975	0.1857	0.2907	0.2219
TE	0.3269	0.4548	0.3043	0.512	0.4484
emVE	0.04547	0.06903	0.04306	0.1099	0.03228
exVE	0.02636	0.04067	0.04483	0.06939	0

Chunk time: 0.01 secs

3.2 Visualisation

We can visualise the results in different ways.

3.2.1 Heatmap

We can plot a heatmap of the clustered ligand-receptor pairs.

plot_cluster_heatmap(
    dissim_matrix = lrp_clusters$dissim_matrix,
    lrp_clusters  = lrp_clusters$clusters
)

Past versions of clustering-heatmap-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.98 secs

3.2.2 UMAP

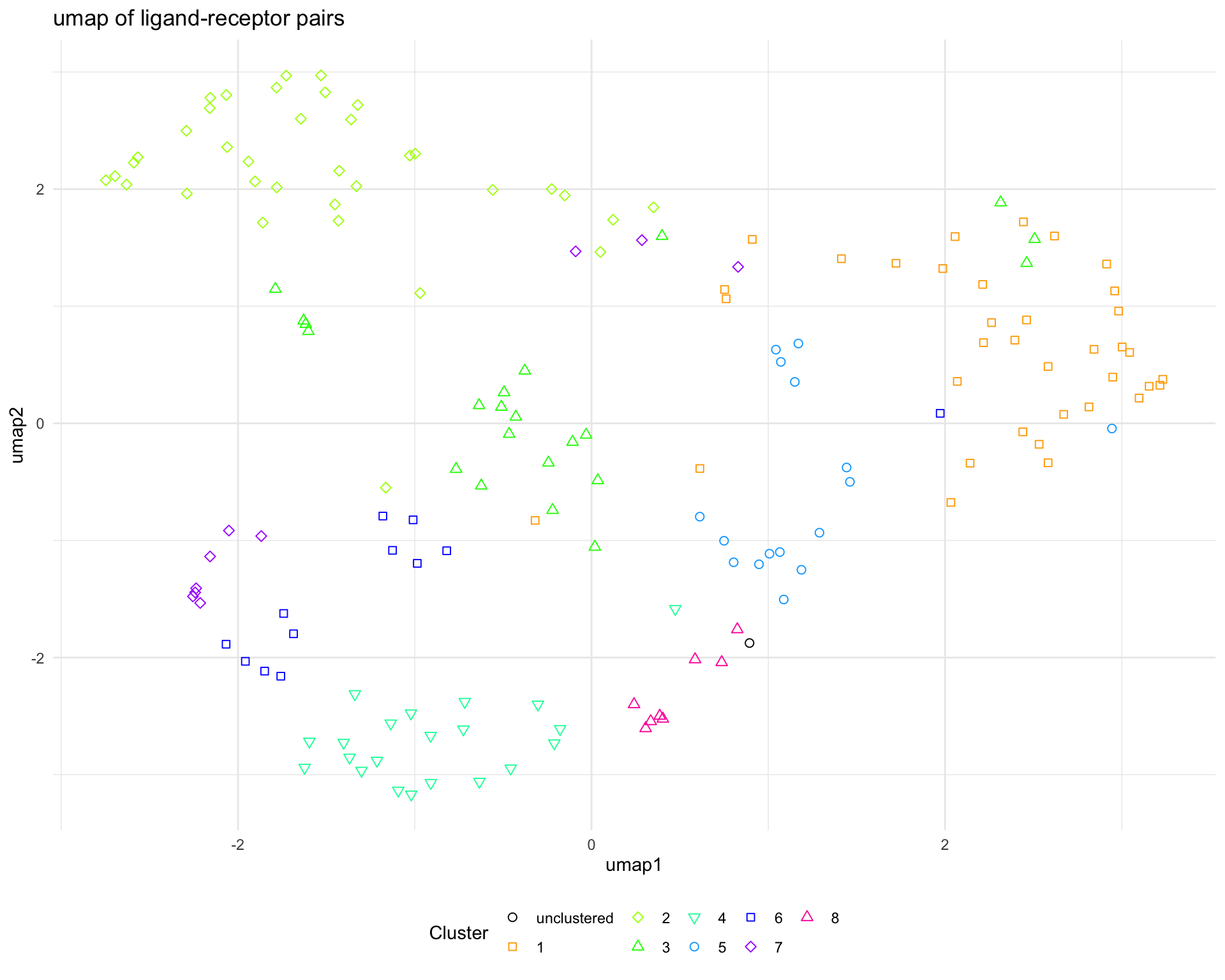

We can also make a UMAP plot showing the pairs in a reduced dimensional space.

plot_cluster_UMAP(
    ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
    dissim_matrix           = lrp_clusters$dissim_matrix,
    lrp_clusters            = lrp_clusters$clusters
)

Past versions of clustering-umap-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.84 secs

3.2.3 Communication pattern

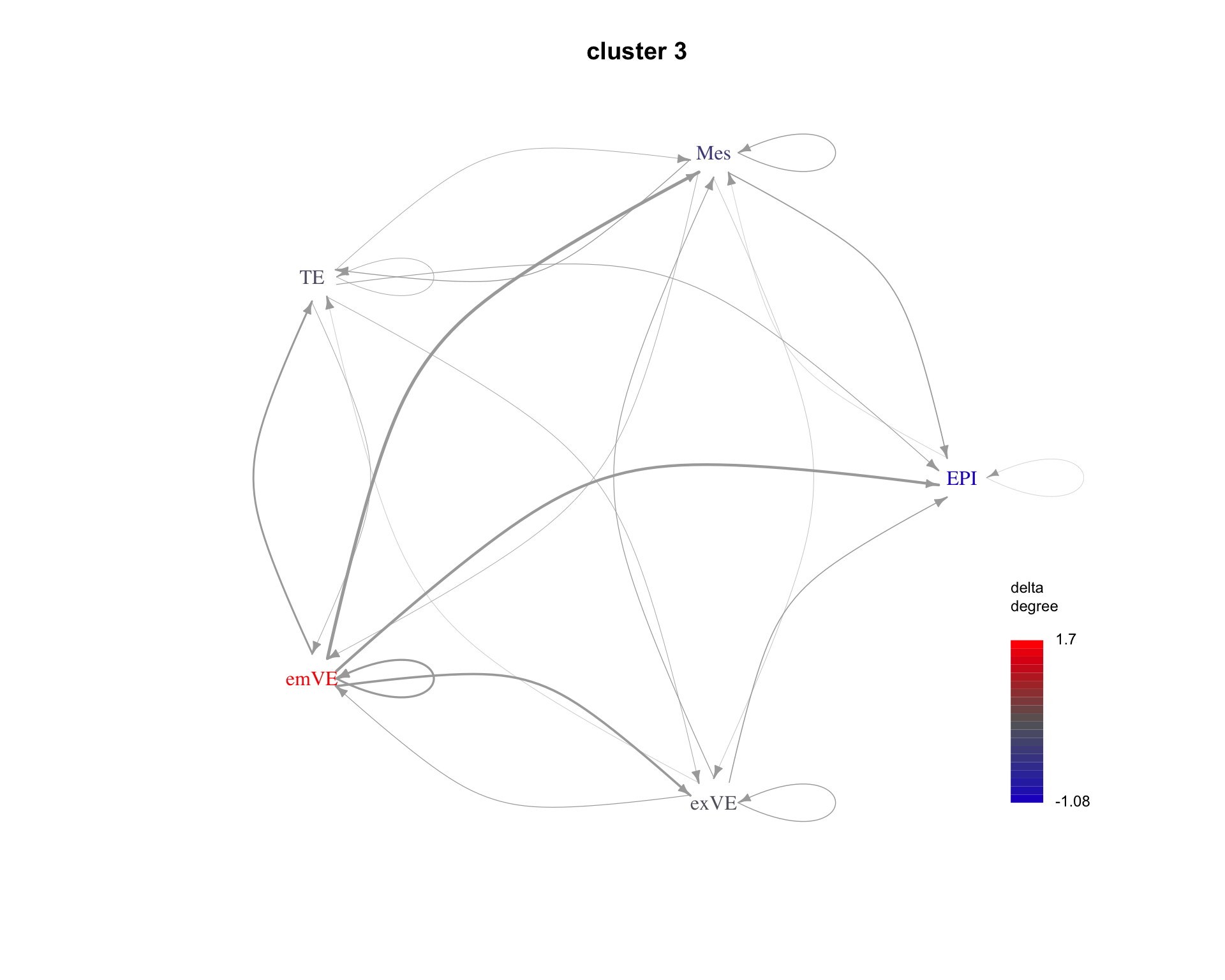

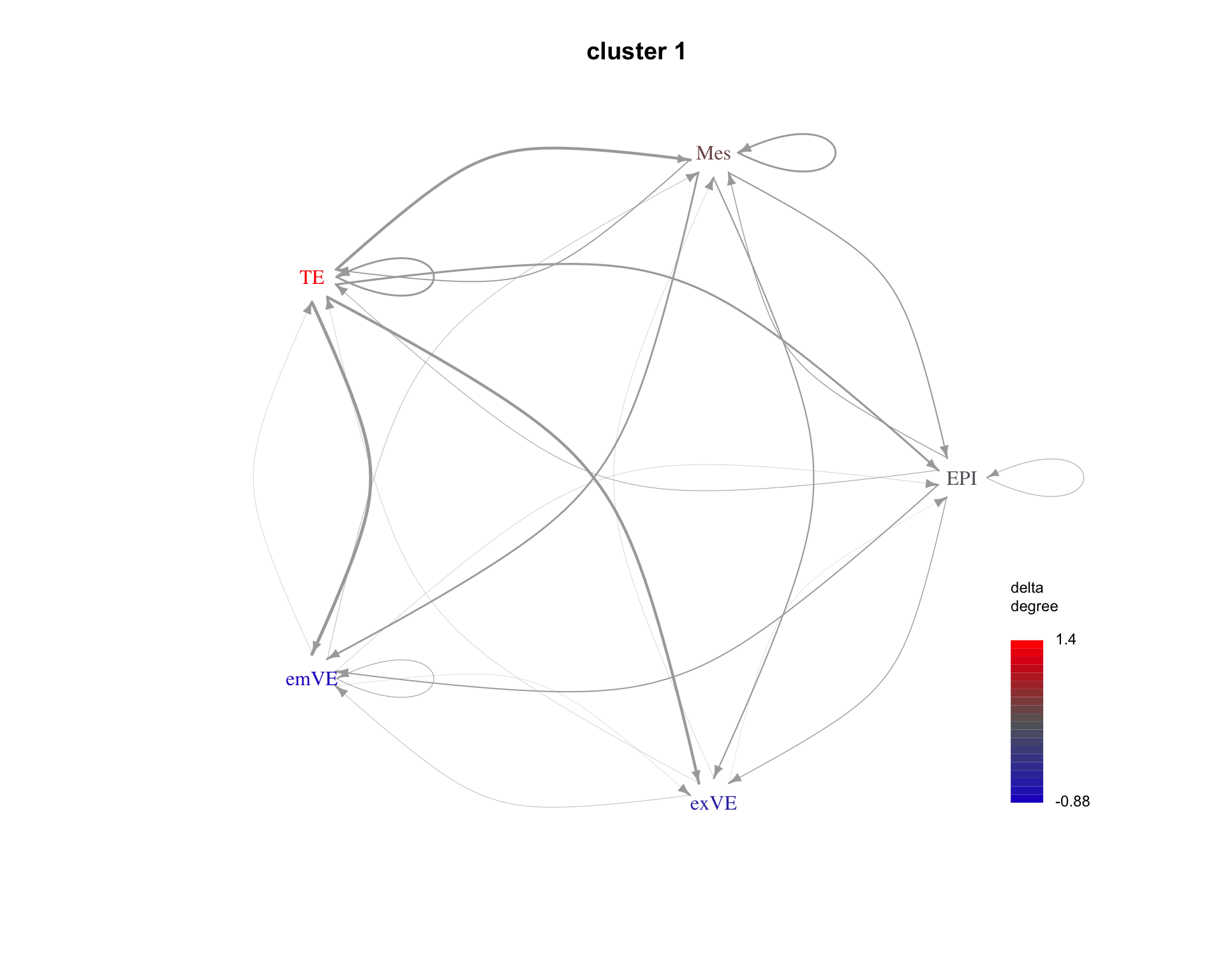

The average communication between cell types for each cluster can be shown as a graph. Here are examples for the first three clusters.

for(cluster_idx in c(1:3)){
    cluster <- paste("cluster", cluster_idx)
    plot_communication_graph(
        LRP = cluster,
        weight_array            = lrp_clusters$weight_array_by_cluster[, , cluster],
        ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
        nodes                   = interactions$nodes,
        is_cluster              = TRUE
    )
}

Past versions of clustering-pattern-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

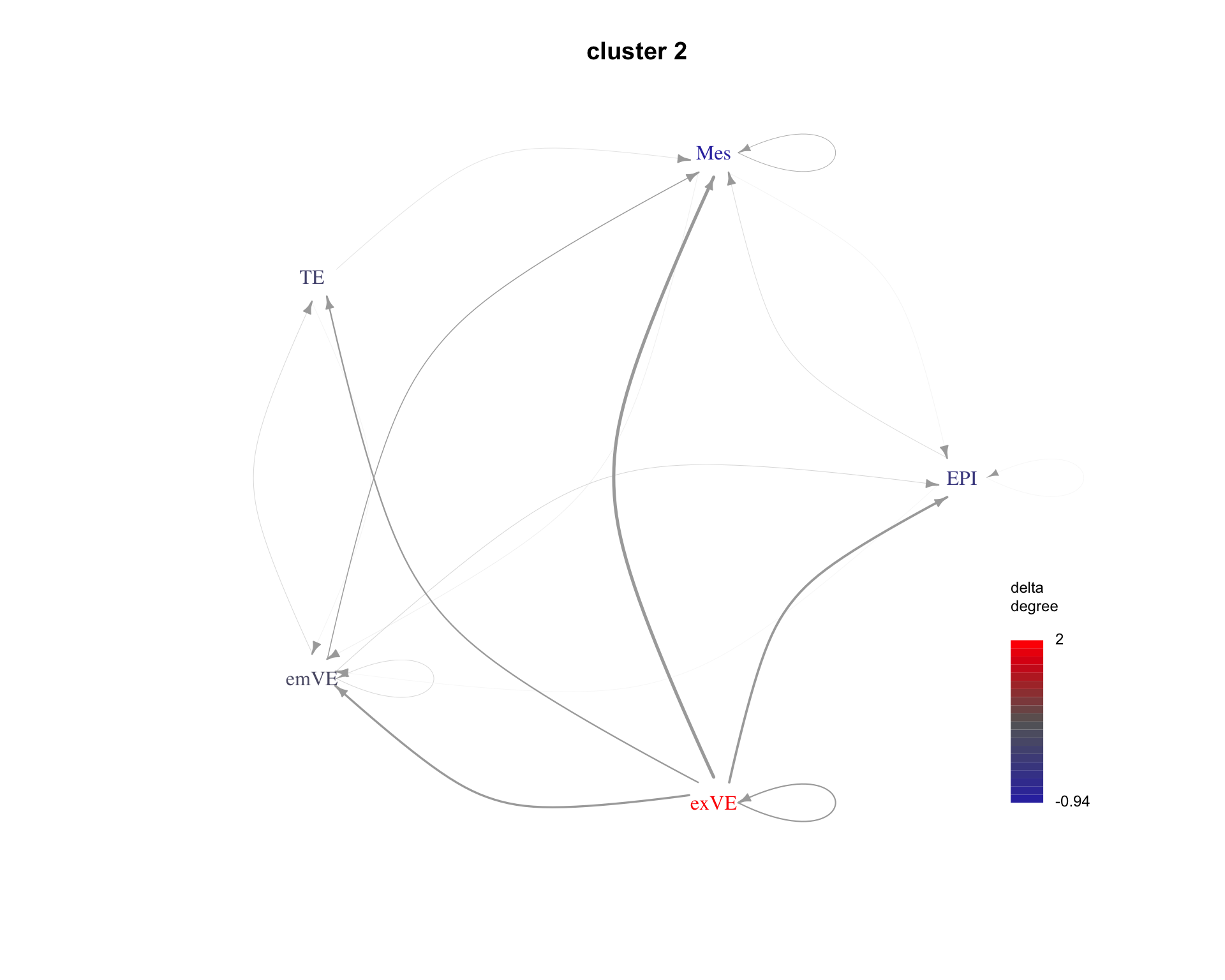

Past versions of clustering-pattern-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Past versions of clustering-pattern-3.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.4 secs

3.2.4 Pairs

We can also look at the specific ligand-receptor pairs in a cluster.

for(cluster_idx in c(1:3)) {
    plot_lig_rec(
        cluster_of_interest     = cluster_idx,
        lrp_clusters            = lrp_clusters$clusters,
        ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
        node_label_cex          = 0.5
    )
}

Past versions of clustering-pairs-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

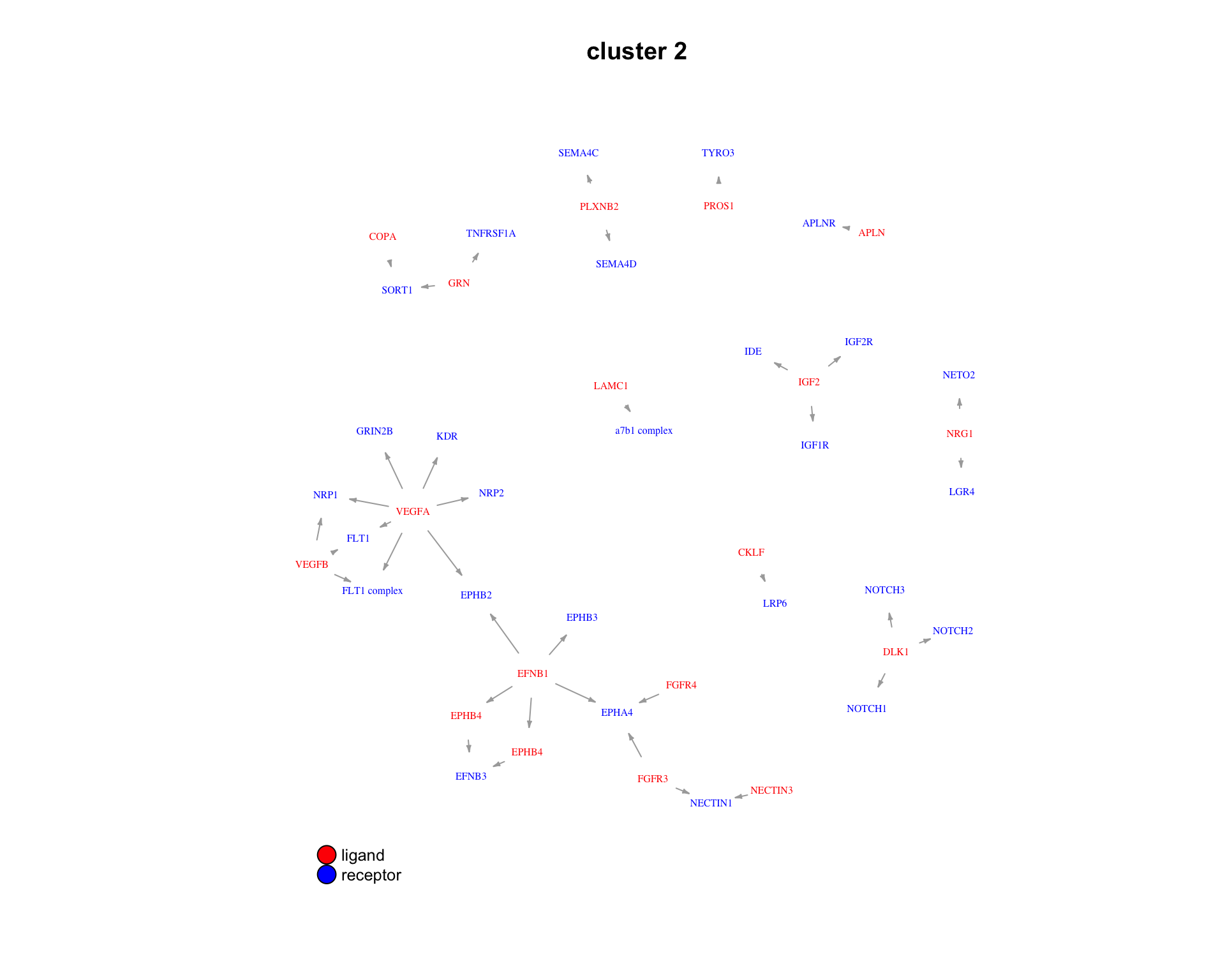

Past versions of clustering-pairs-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

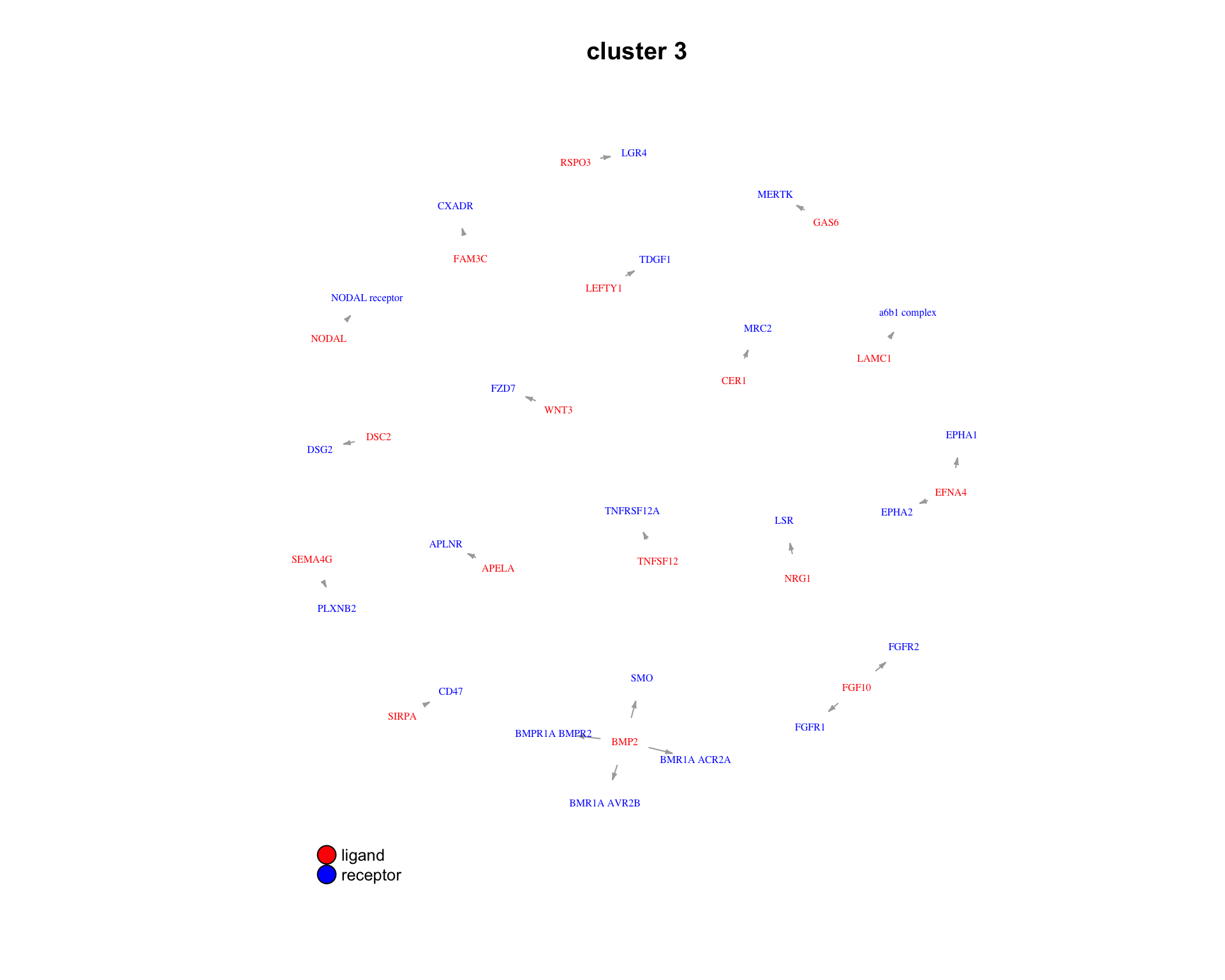

Past versions of clustering-pairs-3.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.62 secs

4 Pattern search

COMUNET can also be used to search for specific patterns of interactions. Here we search for interactions from a specific cell type to all other cell types.

First we construct a matrix describing the pattern we are interested in.

communicating_nodes <- c(
    "exVE_to_EPI", "exVE_to_Mes", "exVE_to_TE", "exVE_to_emVE", "exVE_to_exVE"
)

pattern <- make_pattern_matrix(
    communicating_nodes = communicating_nodes,
    nodes               = interactions$nodes
)

[1] "sending nodes are:"
[1] "exVE" "exVE" "exVE" "exVE" "exVE"
[1] "receiving nodes are:"
[1] "EPI"  "Mes"  "TE"   "emVE" "exVE"

pander(pattern)

	EPI	Mes	TE	emVE	exVE
EPI	0	0	0	0	0
Mes	0	0	0	0	0
TE	0	0	0	0	0
emVE	0	0	0	0	0
exVE	1	1	1	1	1

Chunk time: 0.01 secs

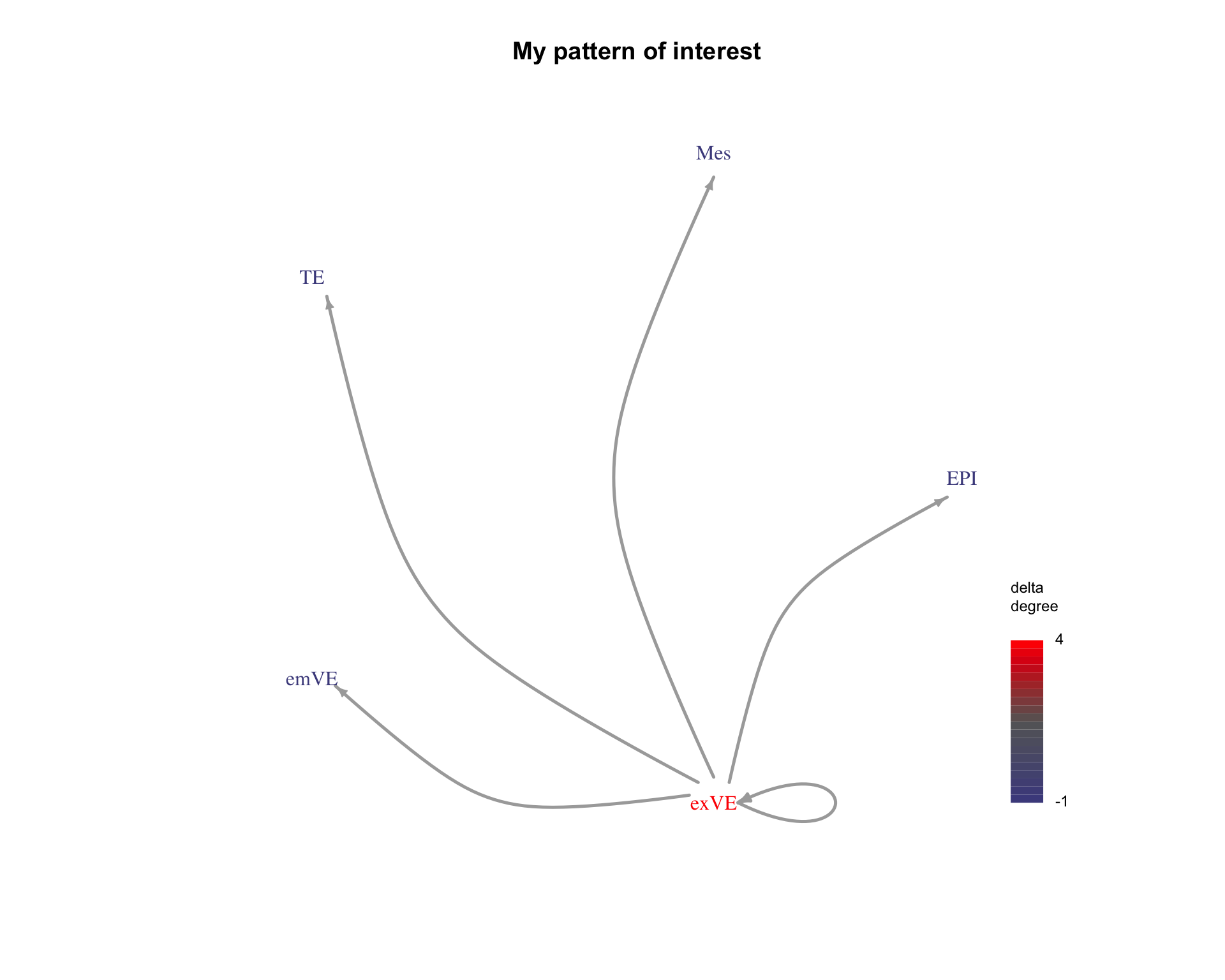

We can also visualise this pattern to check it is correct.

plot_communication_graph(
    LRP = "My pattern of interest",
    weight_array            = pattern,
    ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
    nodes                   = interactions$node,
    is_pattern              = TRUE
)

Past versions of pattern-vis-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.1 secs

Now we can search for this pattern. The result is a dissimilarity to the search pattern for each ligand-receptor pair.

patterns <- pattern_search(
    pattern_adj_matrix      = pattern,
    weight_array            = interactions$weight_array,
    ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
    nodes                   = interactions$nodes
)

skim(patterns)

Data summary

Name	patterns
Number of rows	162
Number of columns	2
_______________________
Column type frequency:
character	1
numeric	1
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
pair	0	1	8	24	0	162	0

Variable type: numeric

skim_variable	n_missing	complete_rate	mean	sd	p0	p25	p50	p75	p100	hist
dissimilarity	0	1	0.88	0.22	0	0.83	1	1	1	▁▁▁▁▇

Chunk time: 0.07 secs

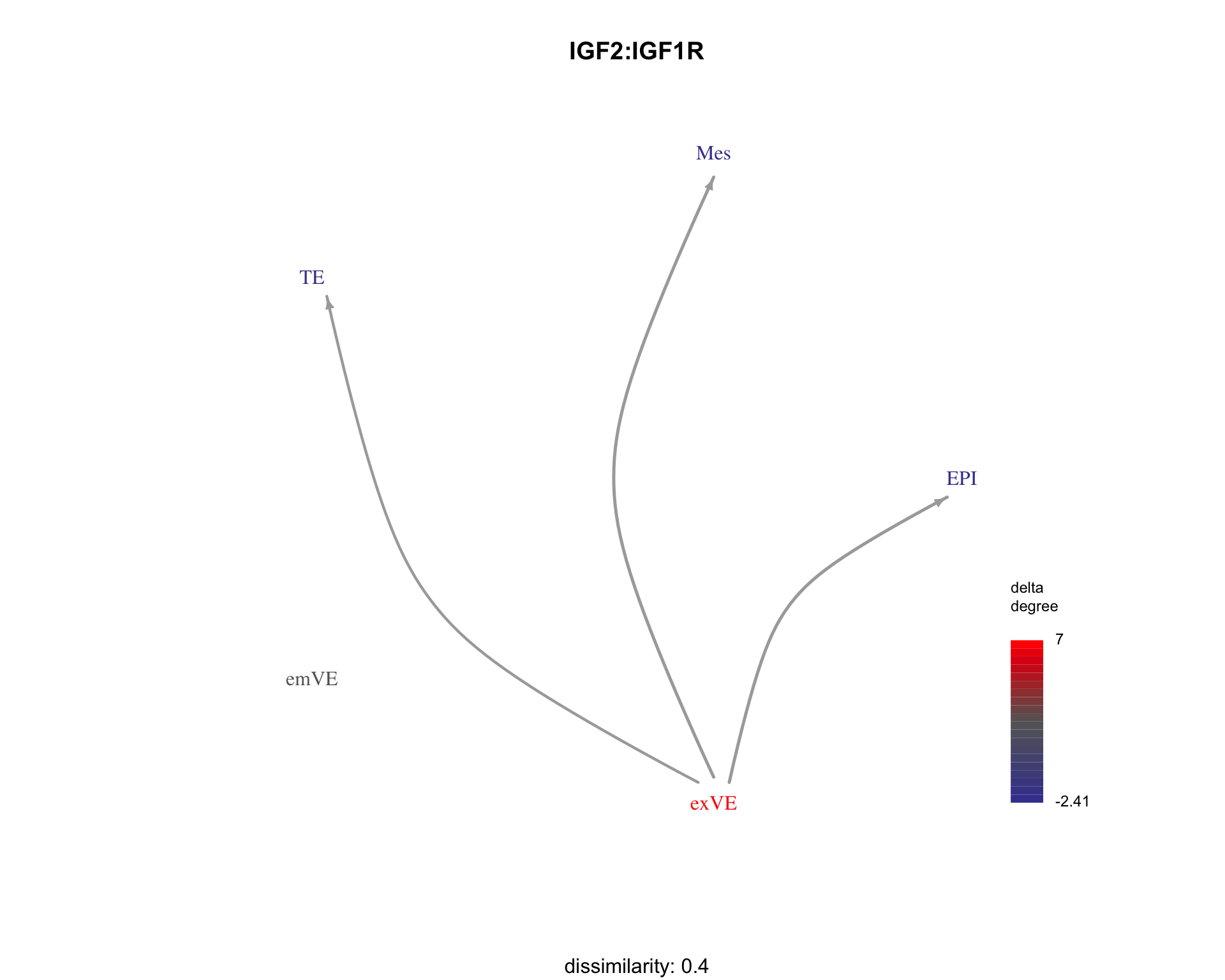

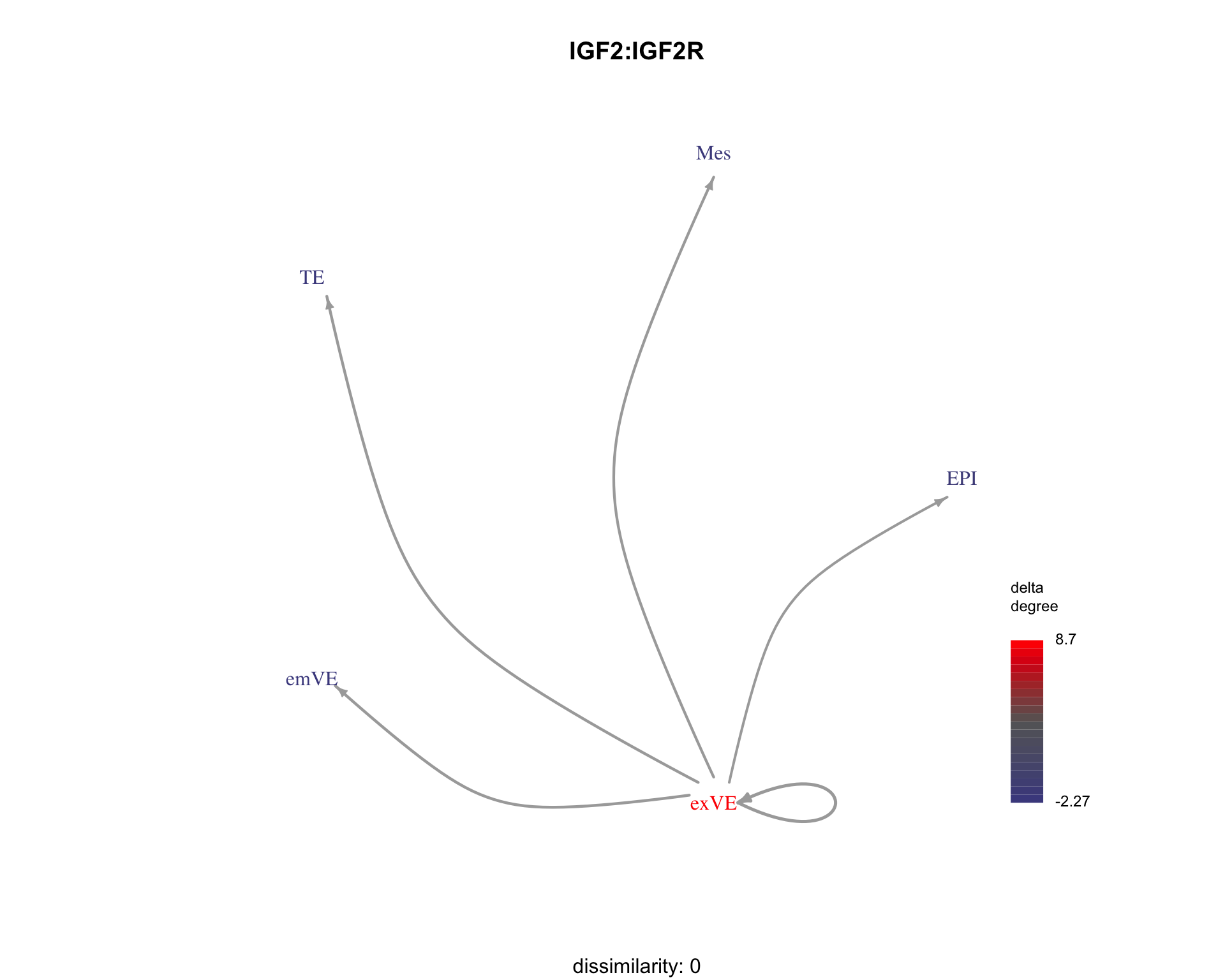

We can visualise examples of some ligand-receptor pairs along with their dissimilarity to the search pattern.

for (pair in c("IGF2:IGF2R", "EFNB1:EPHA4", "IGF2:IGF1R")) {
    plot_communication_graph(
        LRP                     = pair,
        weight_array            = interactions$weight_array,
        ligand_receptor_pair_df = interactions$ligand_receptor_pair_df,
        nodes                   = interactions$node,
        subtitle                = paste(
            "dissimilarity:", patterns[pair,"dissimilarity"]
        )
    )
}

Past versions of pattern-pairs-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

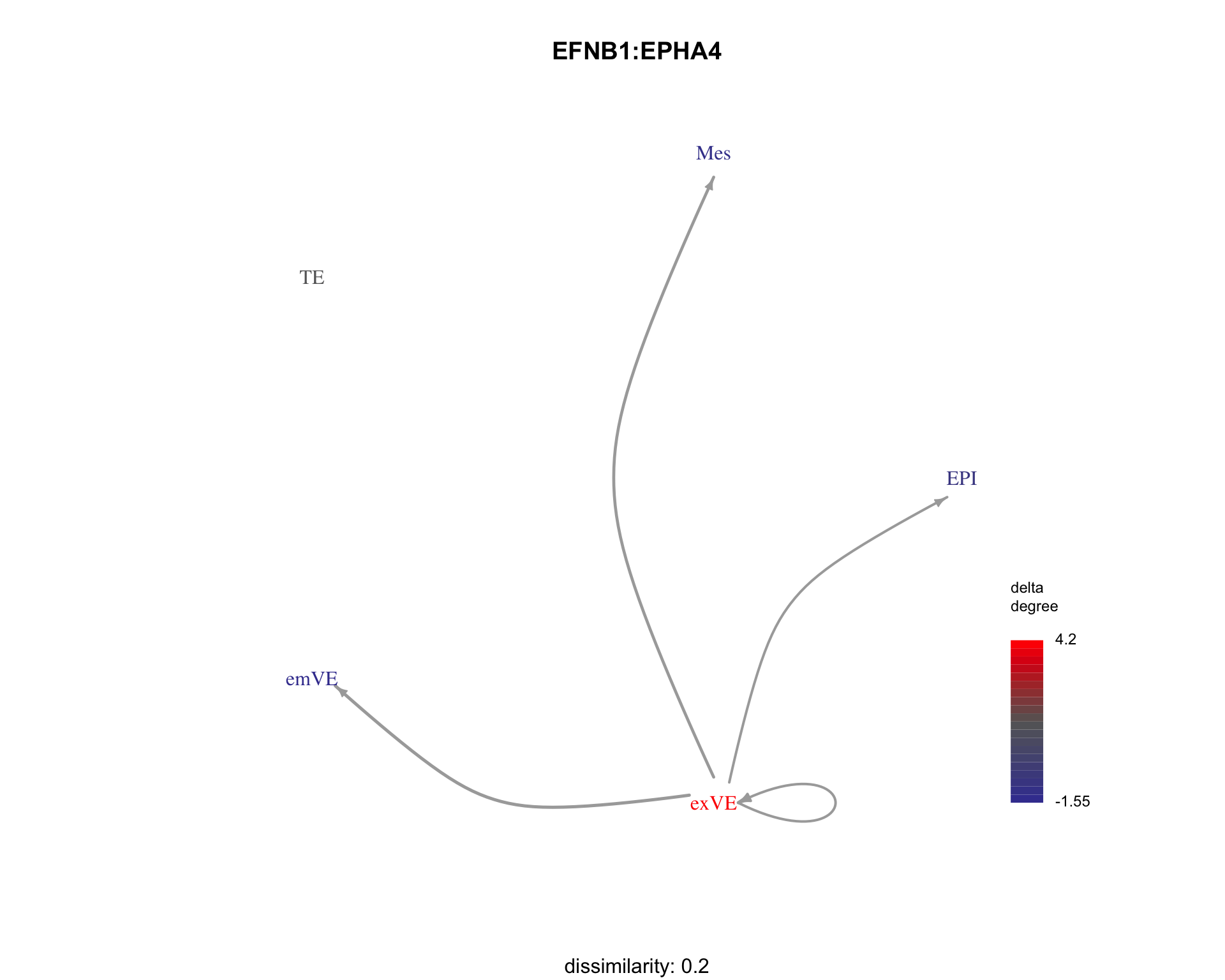

Past versions of pattern-pairs-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Past versions of pattern-pairs-3.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.36 secs

5 Comparative analysis

We can also use COMUNET to compare the interaction network between two conditions. For this analysis we use a second dataset that includes AML samples before and after treatment.

cond1 <- "AML328_d0"
cond2 <- "AML328_d29"

cond1_means <- read_tsv(
    fs::path(PATHS$COMUNET_in, "AML", "means_d0.txt"),
    col_types = cols(
        .default = col_double(),
        id_cp_interaction   = col_character(),
        interacting_pair    = col_character(),
        partner_a           = col_character(),
        partner_b           = col_character(),
        gene_a              = col_character(),
        gene_b              = col_character(),
        secreted            = col_logical(),
        receptor_a          = col_logical(),
        receptor_b          = col_logical(),
        annotation_strategy = col_character(),
        is_integrin         = col_logical()
    )
)

cond2_means <- read_tsv(
    fs::path(PATHS$COMUNET_in, "AML", "means_d29.txt"),
    col_types = cols(
        .default = col_double(),
        id_cp_interaction   = col_character(),
        interacting_pair    = col_character(),
        partner_a           = col_character(),
        partner_b           = col_character(),
        gene_a              = col_character(),
        gene_b              = col_character(),
        secreted            = col_logical(),
        receptor_a          = col_logical(),
        receptor_b          = col_logical(),
        annotation_strategy = col_character(),
        is_integrin         = col_logical()
    )
)

cond1_prepped_means <- cond1_means %>%
    as.data.frame() %>%
    distinct(interacting_pair, .keep_all = TRUE)
rownames(cond1_prepped_means) <- cond1_prepped_means$interacting_pair

cond2_prepped_means <- cond2_means %>%
    as.data.frame() %>%
    distinct(interacting_pair, .keep_all = TRUE)
rownames(cond2_prepped_means) <- cond2_prepped_means$interacting_pair

cond1_interactions <- convert_CellPhoneDB_output(
    CellPhoneDB_output = cond1_prepped_means,
    complex_input      = complex_input,
    gene_input         = gene_input
)

cond2_interactions <- convert_CellPhoneDB_output(
    CellPhoneDB_output = cond2_prepped_means,
    complex_input      = complex_input,
    gene_input         = gene_input
)

Chunk time: 27.1 secs

First we check the overlap in ligand-receptor pairs in the two conditions.

cond1_pairs <- cond1_interactions$ligand_receptor_pair_df$pair
cond2_pairs <- cond2_interactions$ligand_receptor_pair_df$pair

inter <- intersect(cond1_pairs, cond2_pairs)
cond1_only <- setdiff(cond1_pairs, cond2_pairs)
cond2_only <- setdiff(cond2_pairs, cond1_pairs)

Chunk time: 0.01 secs

There are 305 pairs present in both conditions, 14, present only in the first condition and 10 present in only the second condition.

Just because the pairs are present doesn’t mean they are interacting in the same way. To find that out we need to run the analysis.

result <- comparative_analysis(
    cond1_weight_array            = cond1_interactions$weight_array,
    cond2_weight_array            = cond2_interactions$weight_array,
    cond1_ligand_receptor_pair_df = cond1_interactions$ligand_receptor_pair_df,
    cond2_ligand_receptor_pair_df = cond2_interactions$ligand_receptor_pair_df,
    cond1_nodes                   = cond1_interactions$nodes,
    cond2_nodes                   = cond2_interactions$nodes,
    cond1_name                    = cond1,
    cond2_name                    = cond2
)

Chunk time: 1.21 mins

5.1 Output

The output of the comparison function is a list with 2 items.

5.1.1 Pairs

The first item describes the ligand-receptor pairs, which conditions that are present in and the dissimilarity between the conditions.

skim(result$sorted_LRP_df)

Data summary

Name	result$sorted_LRP_df
Number of rows	329
Number of columns	3
_______________________
Column type frequency:
character	1
factor	1
numeric	1
________________________
Group variables	None

Variable type: character

skim_variable	n_missing	complete_rate	min	max	empty	n_unique	whitespace
pair	0	1	7	24	0	329	0

Variable type: factor

skim_variable	n_missing	complete_rate	ordered	n_unique	top_counts
presence	0	1	TRUE	3	sha: 305, onl: 14, onl: 10

Variable type: numeric

skim_variable	n_missing	complete_rate	mean	sd	p0	p25	p50	p75	p100	hist
dissimilarity	0	1	0.79	0.17	0.13	0.68	0.83	0.91	1	▁▁▂▅▇

Chunk time: 0.06 secs

5.1.2 Dissimilarity

The second output is a dissimilarity matrix where the rows are ligand-receptor pairs in condition 1 and and the columns are ligand-receptor pairs in condition 2.

pander(result$dissim_cond1_cond2[1:5, 1:5])

Table continues below

	TNFSF9:HLA-DPA1	TNFSF9:PVR	PVR:CD96	PVR:CD226
TNFSF9:HLA-DPA1	0.8851	0.972	0.9291	0.9455
TNFSF9:PVR	0.9782	0.9227	0.9766	0.9211
PVR:CD96	0.9358	0.9459	0.7778	0.9017
PVR:CD226	0.9213	0.9399	0.8773	0.8039
TIGIT:PVR	0.946	0.9062	0.9241	0.8799

	TIGIT:PVR
TNFSF9:HLA-DPA1	0.9789
TNFSF9:PVR	0.9486
PVR:CD96	0.8841
PVR:CD226	0.8951
TIGIT:PVR	0.8166

Chunk time: 0.02 secs

5.2 Visualisation

5.2.1 Heatmap

We can plot a heatmap of the dissimilarity between conditions.

plot_dissimilarity_heatmaps(
    dissim_cond1_cond2 = result$dissim_cond1_cond2,
    sorted_LRP_df      = result$sorted_LRP_df,
    cond1_name         = cond1,
    cond2_name         = cond2
)

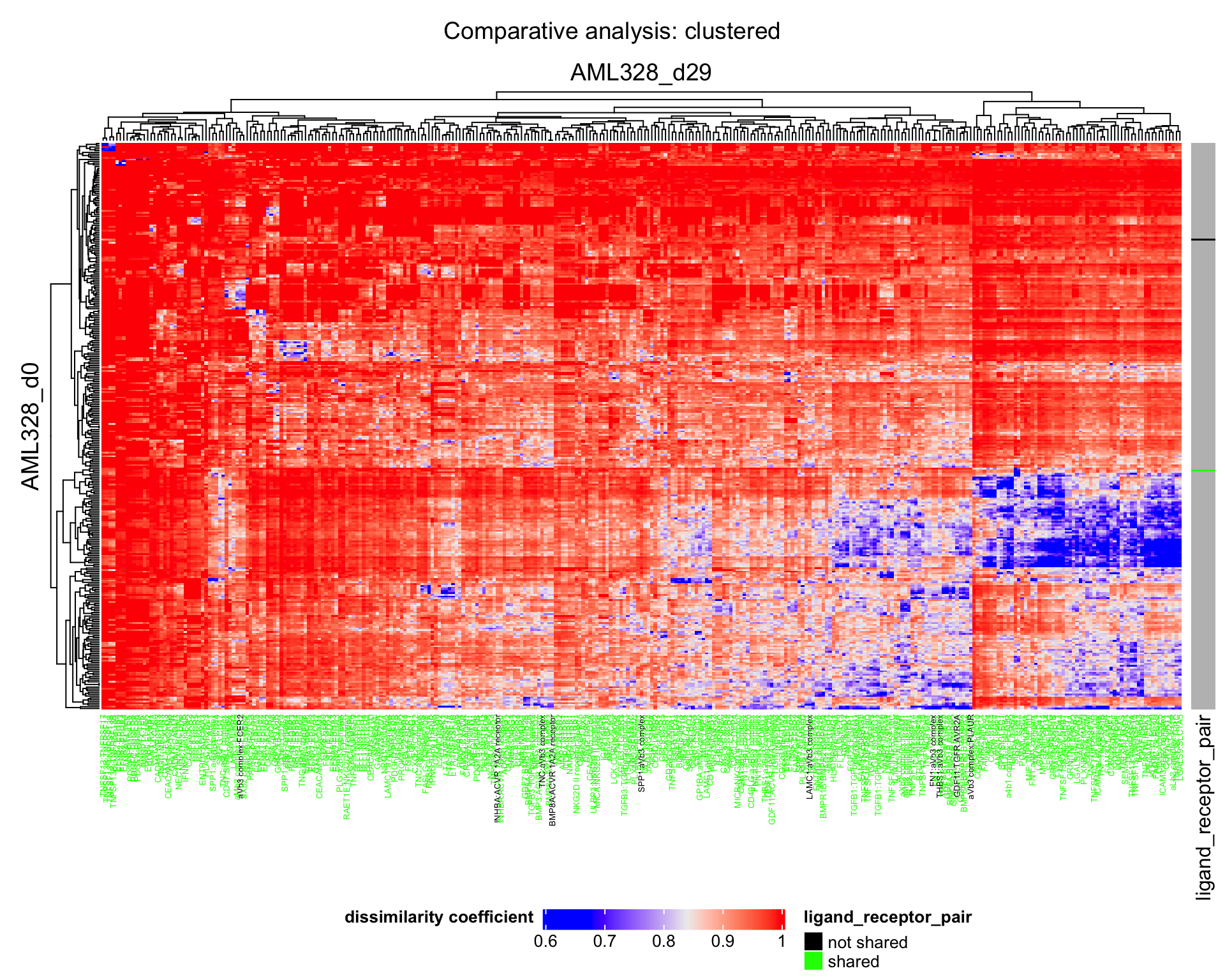

Past versions of comparison-heatmap-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Past versions of comparison-heatmap-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 7.98 secs

5.2.2 Graphs

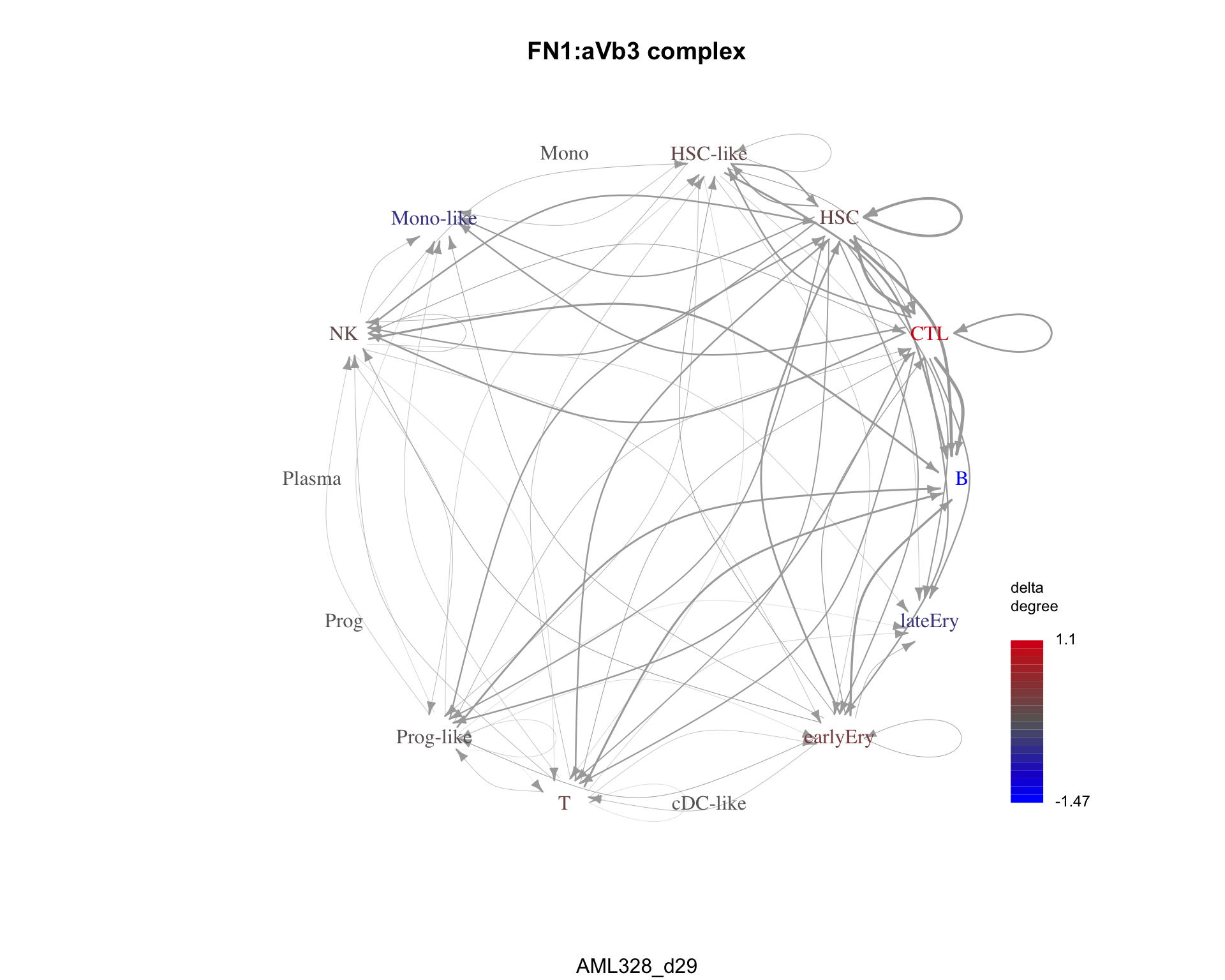

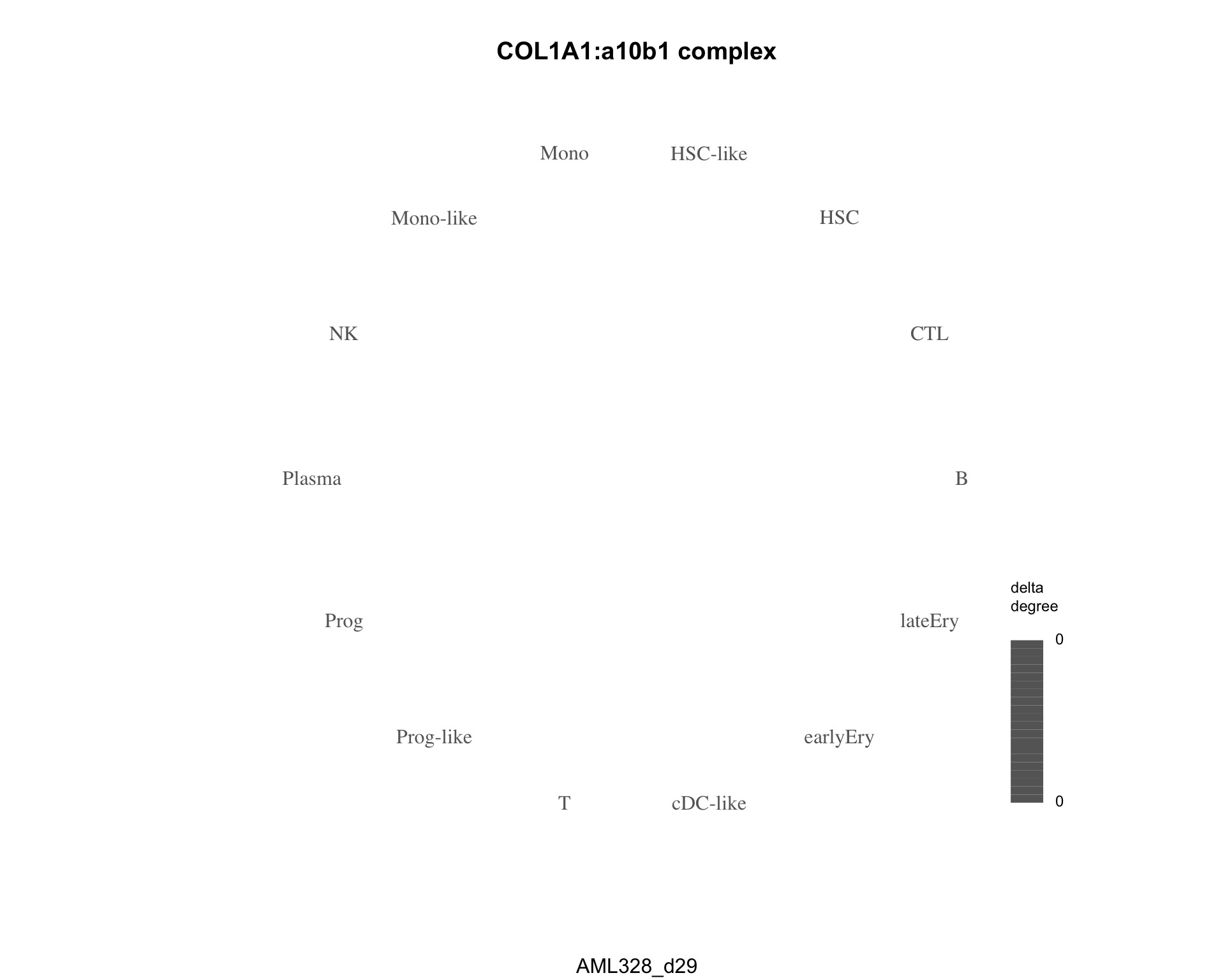

Graphs can be used to show the communication networks for a ligand-receptor pair. Let’s compare the graphs between conditions for a set of example pairs.

5.2.2.1 Most similar

most_similar <- result$sorted_LRP_df %>%
    filter(
        presence      == "shared",
        dissimilarity == min(dissimilarity)
    )

Chunk time: 0 secs

The most similar pair is HLA-C:KIR2DL3 with a dissimilarity of 0.1293086.

plot_communication_graph(
    LRP                     = most_similar$pair,
    weight_array            = cond1_interactions$weight_array,
    ligand_receptor_pair_df = cond1_interactions$ligand_receptor_pair_df,
    nodes                   = cond1_interactions$node,
    title                   = most_similar$pair,
    subtitle                = cond1
)

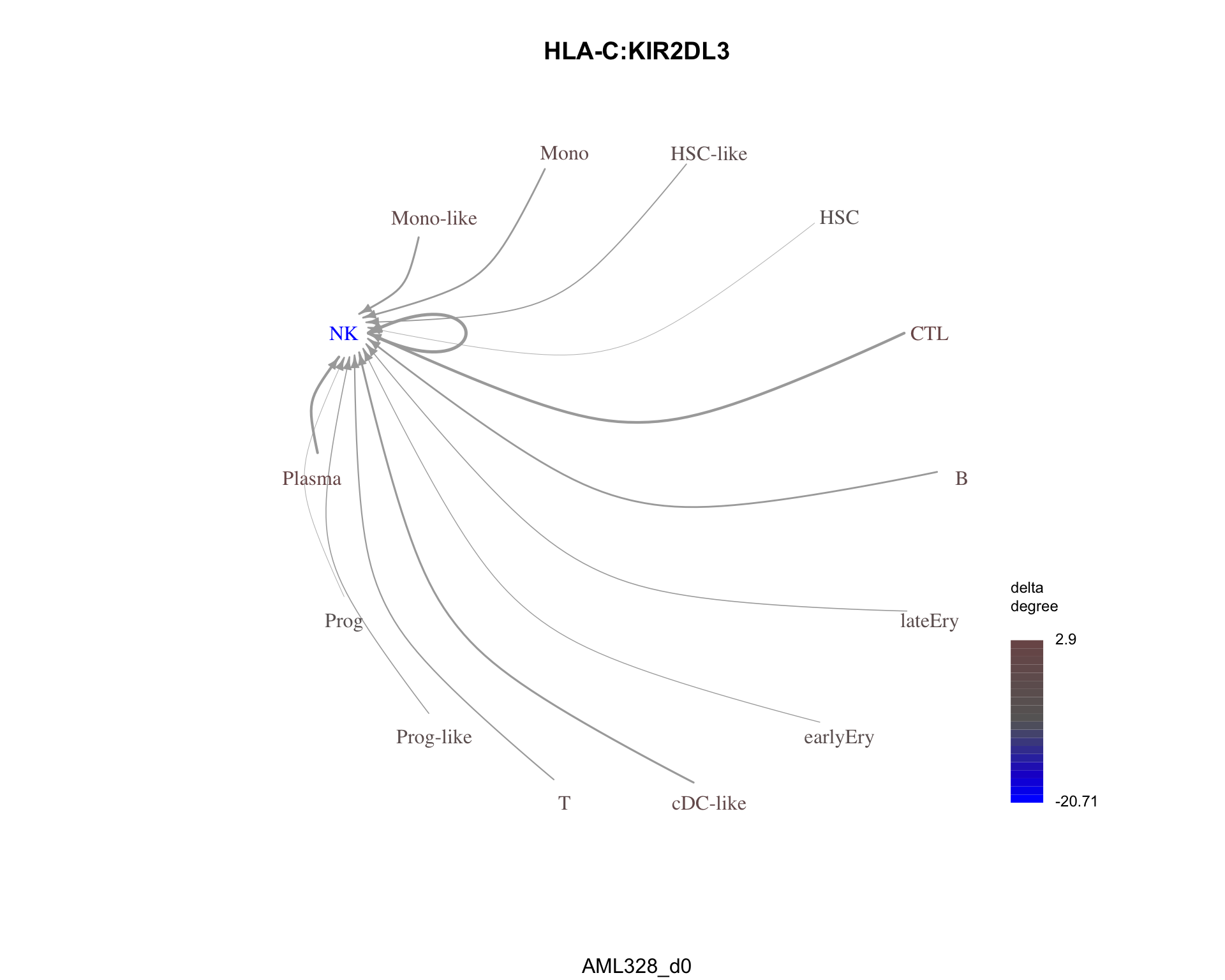

Past versions of comparison-most-graph-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

plot_communication_graph(
    LRP                     = most_similar$pair,
    weight_array            = cond2_interactions$weight_array,
    ligand_receptor_pair_df = cond2_interactions$ligand_receptor_pair_df,
    nodes                   = cond2_interactions$node,
    title                   = most_similar$pair,
    subtitle                = cond2
)

Past versions of comparison-most-graph-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.32 secs

5.2.2.2 Least similar

least_similar <- result$sorted_LRP_df %>%
    filter(
        presence      == "shared",
        dissimilarity == max(dissimilarity)
    ) %>%
    top_n(1, pair)

Chunk time: 0 secs

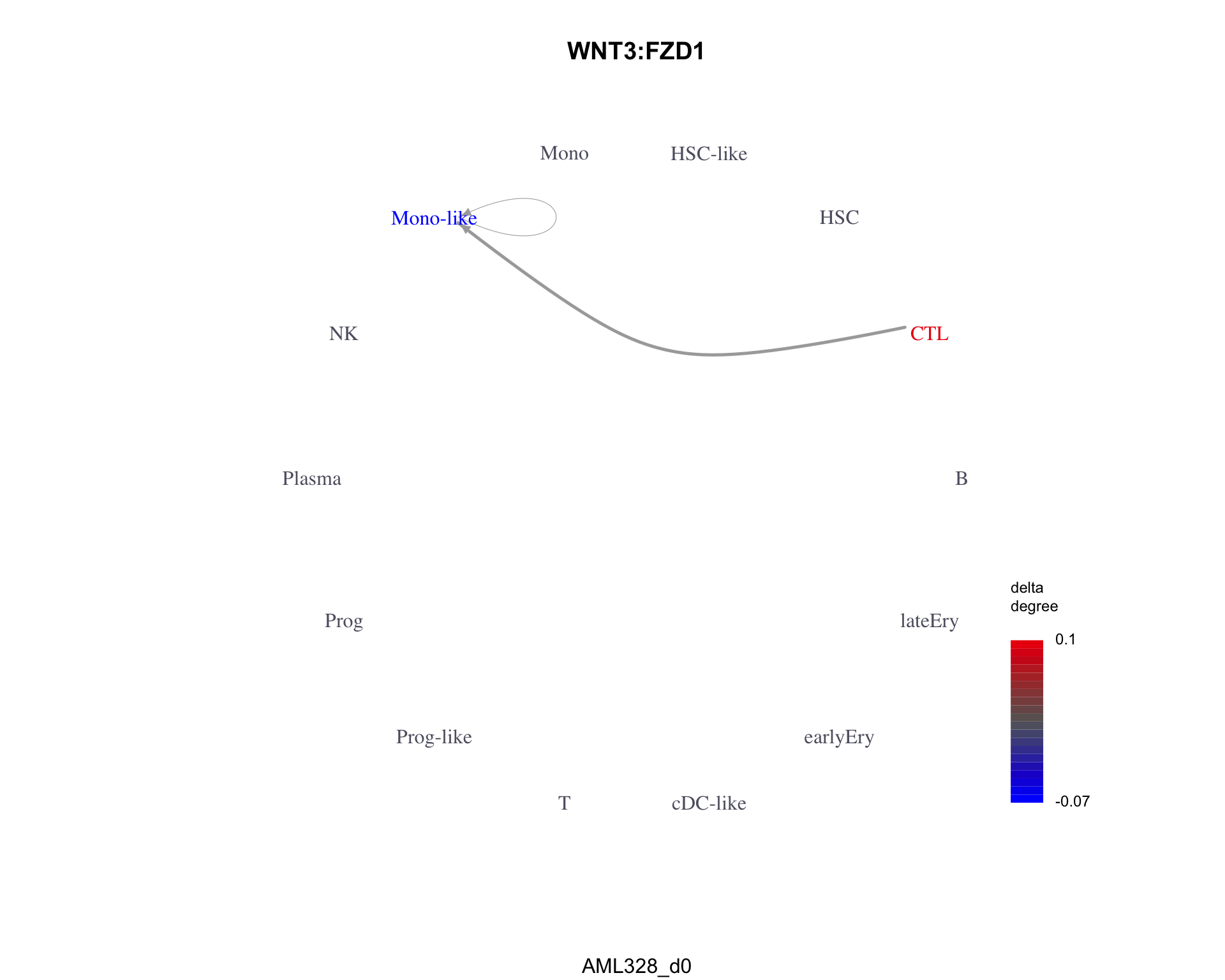

The least similar pair is WNT3:FZD1 with a dissimilarity of 1.

plot_communication_graph(
    LRP                     = least_similar$pair,
    weight_array            = cond1_interactions$weight_array,
    ligand_receptor_pair_df = cond1_interactions$ligand_receptor_pair_df,
    nodes                   = cond1_interactions$node,
    title                   = least_similar$pair,
    subtitle                = cond1
)

Past versions of comparison-least-graph-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

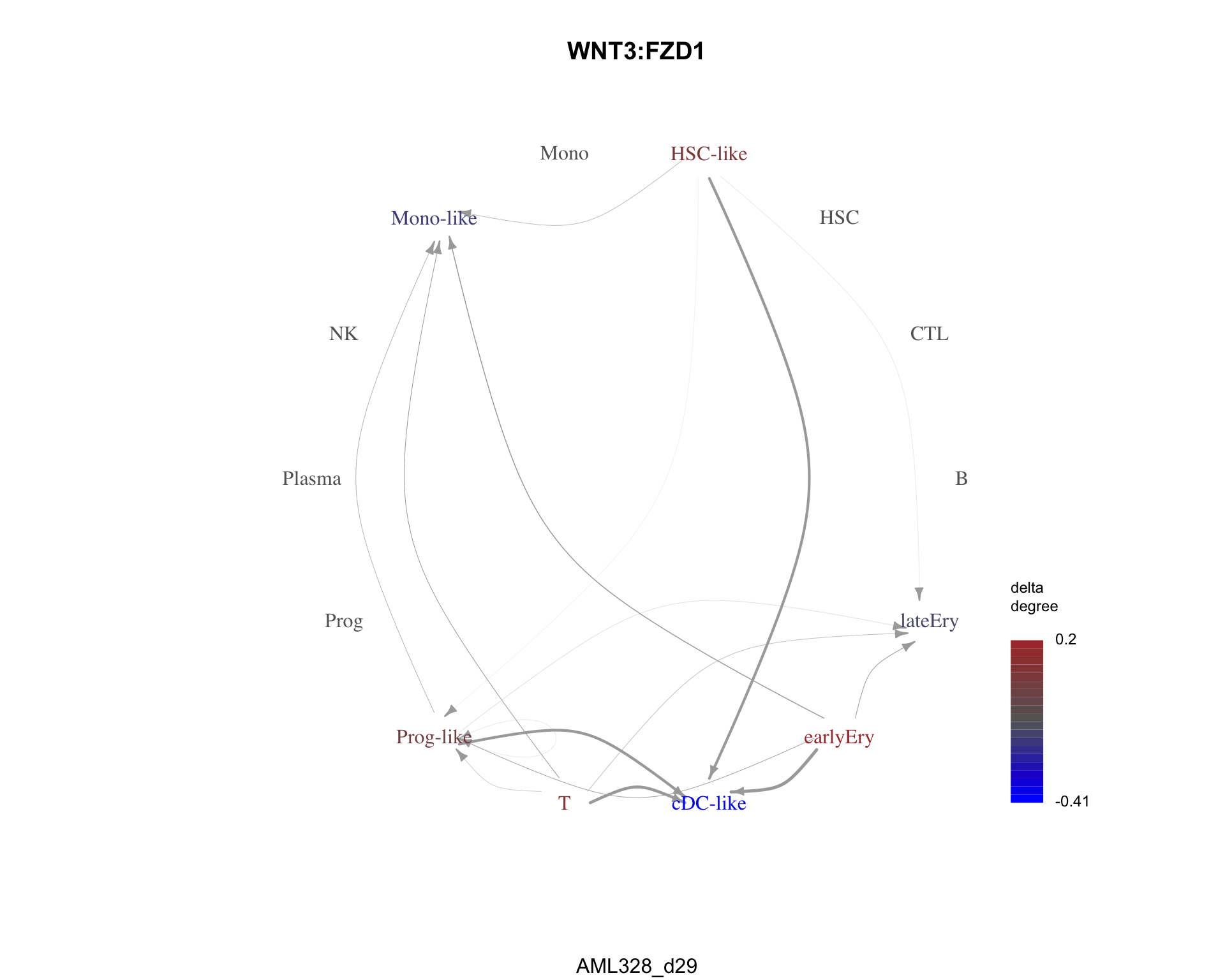

plot_communication_graph(
    LRP                     = least_similar$pair,
    weight_array            = cond2_interactions$weight_array,
    ligand_receptor_pair_df = cond2_interactions$ligand_receptor_pair_df,
    nodes                   = cond2_interactions$node,
    title                   = least_similar$pair,
    subtitle                = cond2
)

Past versions of comparison-least-graph-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.29 secs

5.2.2.3 Condition 1 only

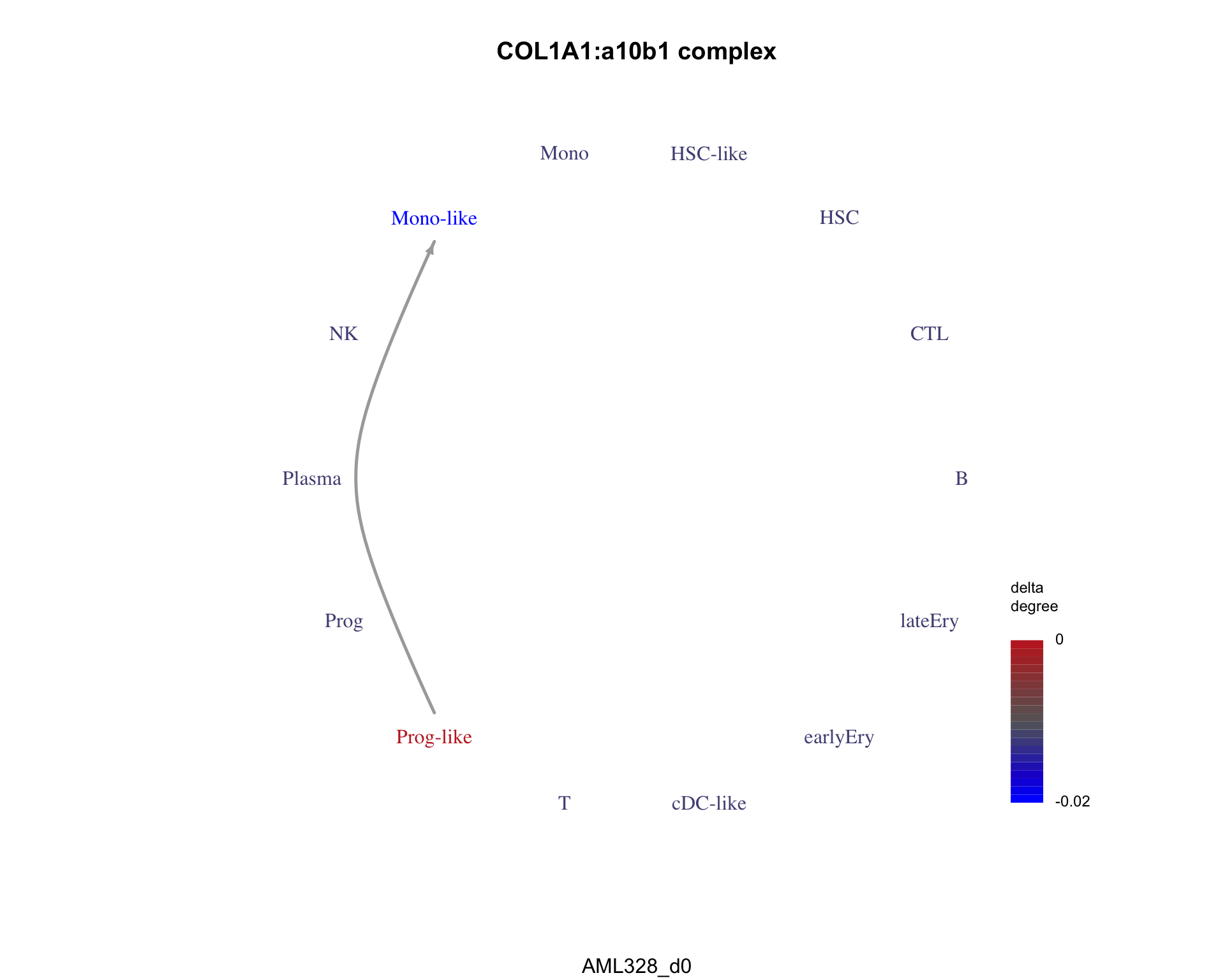

An example of a pair only in condition 1 is COL1A1:a10b1 complex.

plot_communication_graph(
    LRP                     = cond1_only[1],
    weight_array            = cond1_interactions$weight_array,
    ligand_receptor_pair_df = cond1_interactions$ligand_receptor_pair_df,
    nodes                   = cond1_interactions$node,
    title                   = cond1_only[1],
    subtitle                = cond1
)

Past versions of comparison-cond1-graph-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

plot_communication_graph(
    LRP                     = cond1_only[1],
    weight_array            = cond2_interactions$weight_array,
    ligand_receptor_pair_df = cond2_interactions$ligand_receptor_pair_df,
    nodes                   = cond2_interactions$node,
    title                   = cond1_only[1],
    subtitle                = cond2
)

Past versions of comparison-cond1-graph-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.29 secs

5.2.2.4 Condition 2 only

An example of a pair only in condition 2 is FN1:aVb3 complex.

plot_communication_graph(
    LRP                     = cond2_only[1],
    weight_array            = cond1_interactions$weight_array,
    ligand_receptor_pair_df = cond1_interactions$ligand_receptor_pair_df,
    nodes                   = cond1_interactions$node,
    title                   = cond2_only[1],
    subtitle                = cond1
)

Past versions of comparison-cond2-graph-1.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

plot_communication_graph(
    LRP                     = cond2_only[1],
    weight_array            = cond2_interactions$weight_array,
    ligand_receptor_pair_df = cond2_interactions$ligand_receptor_pair_df,
    nodes                   = cond2_interactions$node,
    title                   = cond2_only[1],
    subtitle                = cond2
)

Past versions of comparison-cond2-graph-2.png

Version	Author	Date
259369a	Luke Zappia	2020-06-04

Chunk time: 0.34 secs

Summary

Parameters

This table describes parameters used and set in this document.

params <- list(

)
params <- toJSON(params, pretty = TRUE)
kable(fromJSON(params))

Chunk time: 0.01 secs

Output files

This table describes the output files produced by this document. Right click and Save Link As… to download the results.

lrp_clusters$dissim_matrix %>%
    as.data.frame() %>%
    rownames_to_column("Pair") %>%
    write_tsv(fs::path(OUT_DIR, "cluster_dissimilarity.tsv"))

tibble(Pair = names(lrp_clusters$clusters), Cluster = lrp_clusters$clusters) %>%
    write_tsv(fs::path(OUT_DIR, "clusters.tsv"))

write_rds(
    lrp_clusters$weight_array_by_cluster,
    fs::path(OUT_DIR, "cluster_weights.Rds")
)

write_tsv(patterns, fs::path(OUT_DIR, "patterns.tsv"))

write_tsv(result$sorted_LRP_df, fs::path(OUT_DIR, "comparison_pairs.tsv"))

result$dissim_cond1_cond2 %>%
    as.data.frame() %>%
    rownames_to_column("Condition1") %>%
    write_tsv(fs::path(OUT_DIR, "comparison_dissimilarity.tsv"))

kable(data.frame(
    File = c(
        download_link("parameters.json", OUT_DIR),
        download_link("cluster_dissimilarity.tsv", OUT_DIR),
        download_link("clusters.tsv", OUT_DIR),
        download_link("cluster_weights.Rds", OUT_DIR),
        download_link("patterns.tsv", OUT_DIR),
        download_link("comparison_pairs.tsv", OUT_DIR),
        download_link("comparison_dissimilarity.tsv", OUT_DIR)
    ),
    Description = c(
        "Parameters set and used in this analysis",
        "Cluster dissimilarity matrix",
        "Cluster assignments for pairs",
        "Cluster average weights array",
        "Pattern dissimilarity for pairs",
        "Comparison information about pairs",
        "Comparison dissimilarity matrix"
    )
))

File	Description
parameters.json	Parameters set and used in this analysis
cluster_dissimilarity.tsv	Cluster dissimilarity matrix
clusters.tsv	Cluster assignments for pairs
cluster_weights.Rds	Cluster average weights array
patterns.tsv	Pattern dissimilarity for pairs
comparison_pairs.tsv	Comparison information about pairs
comparison_dissimilarity.tsv	Comparison dissimilarity matrix

Chunk time: 0.1 secs

Session information

Session information

sessioninfo::session_info()

─ Session info ───────────────────────────────────────────────────────────────
 setting  value
 version  R version 4.0.0 (2020-04-24)
 os       macOS Catalina 10.15.7
 system   x86_64, darwin17.0
 ui       X11
 language (EN)
 collate  en_US.UTF-8
 ctype    en_US.UTF-8
 tz       Europe/Berlin
 date     2020-11-24

─ Packages ───────────────────────────────────────────────────────────────────
 ! package        * version   date       lib
 P askpass          1.1       2019-01-13 [?]
 P assertthat       0.2.1     2019-03-21 [?]
 P backports        1.1.6     2020-04-05 [?]
 P base64enc        0.1-3     2015-07-28 [?]
 P base64url        1.4       2018-05-14 [?]
   BiocGenerics     0.34.0    2020-04-27 [1]
 P broom            0.5.6     2020-04-20 [?]
 P cellranger       1.1.0     2016-07-27 [?]
 P circlize         0.4.9     2020-04-30 [?]
 P cli              2.0.2     2020-02-28 [?]
   clue             0.3-57    2019-02-25 [1]
 P cluster          2.1.0     2019-06-19 [?]
 P colorspace       1.4-1     2019-03-18 [?]
 P ComplexHeatmap * 2.5.4     2020-07-29 [?]
   COMUNET        * 0.1.0     2020-06-03 [1]
 P conflicted     * 1.0.4     2019-06-21 [?]
 P crayon           1.3.4     2017-09-16 [?]
 P DBI              1.1.0     2019-12-15 [?]
 P dbplyr           1.4.3     2020-04-19 [?]
 P digest           0.6.25    2020-02-23 [?]
 P dplyr          * 0.8.5     2020-03-07 [?]
 P drake            7.12.0    2020-03-25 [?]
   dynamicTreeCut * 1.63-1    2016-03-11 [1]
 P ellipsis         0.3.0     2019-09-20 [?]
 P evaluate         0.14      2019-05-28 [?]
 P fansi            0.4.1     2020-01-08 [?]
 P farver           2.0.3     2020-01-16 [?]
 P filelock         1.0.2     2018-10-05 [?]
 P forcats        * 0.5.0     2020-03-01 [?]
 P fs             * 1.4.1     2020-04-04 [?]
 P generics         0.0.2     2018-11-29 [?]
 P GetoptLong       0.1.8     2020-01-08 [?]
 P ggplot2        * 3.3.0     2020-03-05 [?]
 P git2r            0.27.1    2020-05-03 [?]
 P GlobalOptions    0.1.1     2019-09-30 [?]
 P glue           * 1.4.0     2020-04-03 [?]
 P gtable           0.3.0     2019-03-25 [?]
 P haven            2.2.0     2019-11-08 [?]
 P here           * 0.1       2017-05-28 [?]
 P highr            0.8       2019-03-20 [?]
 P hms              0.5.3     2020-01-08 [?]
 P htmltools        0.5.0     2020-06-16 [?]
 P httpuv           1.5.2     2019-09-11 [?]
 P httr             1.4.1     2019-08-05 [?]
 P igraph         * 1.2.5     2020-03-19 [?]
   IRanges          2.22.2    2020-05-21 [1]
 P jsonlite       * 1.6.1     2020-02-02 [?]
 P knitr          * 1.28      2020-02-06 [?]
 P labeling         0.3       2014-08-23 [?]
 P later            1.0.0     2019-10-04 [?]
 P lattice          0.20-41   2020-04-02 [?]
 P lifecycle        0.2.0     2020-03-06 [?]
 P lubridate        1.7.8     2020-04-06 [?]
 P magrittr         1.5       2014-11-22 [?]
 P Matrix           1.2-18    2019-11-27 [?]
 P memoise          1.1.0     2017-04-21 [?]
 P modelr           0.1.7     2020-04-30 [?]
 P munsell          0.5.0     2018-06-12 [?]
 P nlme             3.1-147   2020-04-13 [?]
 P openssl          1.4.1     2019-07-18 [?]
 P pander         * 0.6.3     2018-11-06 [?]
 P pillar           1.4.4     2020-05-05 [?]
 P pkgconfig        2.0.3     2019-09-22 [?]
   png              0.1-7     2013-12-03 [1]
 P prettyunits      1.1.1     2020-01-24 [?]
 P progress         1.2.2     2019-05-16 [?]
 P promises         1.1.0     2019-10-04 [?]
 P purrr          * 0.3.4     2020-04-17 [?]
 P R.methodsS3      1.8.0     2020-02-14 [?]
 P R.oo             1.23.0    2019-11-03 [?]
 P R.utils          2.9.2     2019-12-08 [?]
 P R6               2.4.1     2019-11-12 [?]
 P RColorBrewer     1.1-2     2014-12-07 [?]
 P Rcpp             1.0.4.6   2020-04-09 [?]
 P readr          * 1.3.1     2018-12-21 [?]
 P readxl           1.3.1     2019-03-13 [?]
 P renv             0.12.0    2020-08-28 [?]
 P repr             1.1.0     2020-01-28 [?]
 P reprex           0.3.0     2019-05-16 [?]
 P reticulate       1.16      2020-05-27 [?]
   rjson            0.2.20    2018-06-08 [1]
 P rlang            0.4.6     2020-05-02 [?]
 P rmarkdown        2.1       2020-01-20 [?]
 P rprojroot        1.3-2     2018-01-03 [?]
   RSpectra         0.16-0    2019-12-01 [1]
 P rstudioapi       0.11      2020-02-07 [?]
 P rvest            0.3.5     2019-11-08 [?]
   S4Vectors        0.26.1    2020-05-16 [1]
 P scales           1.1.0     2019-11-18 [?]
 P SDMTools       * 1.1-221.2 2019-11-30 [?]
 P sessioninfo      1.1.1     2018-11-05 [?]
 P shape            1.4.4     2018-02-07 [?]
 P skimr          * 2.1.1     2020-04-16 [?]
 P storr            1.2.1     2018-10-18 [?]
 P stringi          1.4.6     2020-02-17 [?]
 P stringr        * 1.4.0     2019-02-10 [?]
 P tibble         * 3.0.1     2020-04-20 [?]
 P tidyr          * 1.0.3     2020-05-07 [?]
 P tidyselect       1.0.0     2020-01-27 [?]
 P tidyverse      * 1.3.0     2019-11-21 [?]
 P txtq             0.2.0     2019-10-15 [?]
 P umap           * 0.2.5.0   2020-03-09 [?]
 P vctrs            0.2.4     2020-03-10 [?]
 P whisker          0.4       2019-08-28 [?]
 P withr            2.2.0     2020-04-20 [?]
 P workflowr        1.6.2     2020-04-30 [?]
 P xfun             0.13      2020-04-13 [?]
 P xml2             1.3.2     2020-04-23 [?]
 P yaml             2.2.1     2020-02-01 [?]
 source
 standard (@1.1)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.4)
 Bioconductor
 CRAN (R 4.0.0)
 standard (@1.1.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.4-1)
 Github (jokergoo/ComplexHeatmap@d38254f)
 Github (ScialdoneLab/COMUNET@4fd4635)
 standard (@1.0.4)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.14)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.0.2)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.3.0)
 standard (@2.2.0)
 standard (@0.1)
 standard (@0.8)
 CRAN (R 4.0.0)
 CRAN (R 4.0.2)
 standard (@1.5.2)
 standard (@1.4.1)
 CRAN (R 4.0.0)
 Bioconductor
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.3)
 standard (@1.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.2-18)
 standard (@1.1.0)
 CRAN (R 4.0.0)
 standard (@0.5.0)
 CRAN (R 4.0.0)
 standard (@1.4.1)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.1.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.1-2)
 CRAN (R 4.0.0)
 standard (@1.3.1)
 standard (@1.3.1)
 CRAN (R 4.0.2)
 CRAN (R 4.0.0)
 standard (@0.3.0)
 CRAN (R 4.0.2)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.3.5)
 Bioconductor
 standard (@1.1.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.2.1)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@1.3.0)
 standard (@0.2.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 standard (@0.4)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)
 CRAN (R 4.0.0)

[1] /Users/luke.zappia/Documents/Projects/interaction-tools/renv/library/R-4.0/x86_64-apple-darwin17.0
[2] /private/var/folders/rj/60lhr791617422kqvh0r4vy40000gn/T/RtmpOqMPdA/renv-system-library
[3] /private/var/folders/rj/60lhr791617422kqvh0r4vy40000gn/T/RtmpqYMqtc/renv-system-library
[4] /private/var/folders/rj/60lhr791617422kqvh0r4vy40000gn/T/RtmpQ26PTS/renv-system-library

 P ── Loaded and on-disk path mismatch.

Chunk time: 0.2 secs
