Preprocess mHSPC datasets

Preprocess mHSPC datasets#

Library imports#

import scanpy as sc
import scvelo as scv
from velovi import preprocess_data

from rgv_tools import DATA_DIR

/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_csv from `anndata` is deprecated. Import anndata.io.read_csv instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_excel from `anndata` is deprecated. Import anndata.io.read_excel instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_hdf from `anndata` is deprecated. Import anndata.io.read_hdf instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_loom from `anndata` is deprecated. Import anndata.io.read_loom instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_mtx from `anndata` is deprecated. Import anndata.io.read_mtx instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_text from `anndata` is deprecated. Import anndata.io.read_text instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_umi_tools from `anndata` is deprecated. Import anndata.io.read_umi_tools instead.
  warnings.warn(msg, FutureWarning)

General settings#

sc.settings.verbosity = 2
scv.settings.verbosity = 3

Constants#

DATASET = "mHSPC"

SAVE_DATA = True
if SAVE_DATA:
    (DATA_DIR / DATASET / "processed").mkdir(parents=True, exist_ok=True)

Data loading#

adata_velo = sc.read_loom(DATA_DIR / DATASET / "raw" / "Nestorowa.loom")
adata_p = sc.read_h5ad(DATA_DIR / DATASET / "raw" / "adata_nestorowa.h5ad")

adata_p.obs
cell_IDs cell_types_IDs cell_types_broad cell_types_fine cell_types_broad_cleaned n_counts n_genes mito_ratio initial_size_spliced initial_size_unspliced initial_size size_factors_x size_factors_s size_factors_u leiden velocity_self_transition
SRR3558184 HSPC_001_rep HSPC MPP_broad, STHSC_broad None MPP_broad 1404060.0 5826 0.0 1404060 224383 1404060.0 2.722215 2.722215 2.770269 1 0.113736
SRR3558185 HSPC_002_rep HSPC LTHSC_broad LTHSC LTHSC_broad 130334.0 4730 0.0 130334 19788 130334.0 0.242590 0.242590 0.211278 1 0.106622
SRR3558186 HSPC_003_rep HSPC MPP_broad, MPP3_broad None MPP_broad 627148.0 6372 0.0 627148 84188 627148.0 1.043037 1.043037 1.068530 3 0.022092
SRR3558187 HSPC_004_rep HSPC LMPP_broad LMPP LMPP_broad 317301.0 5536 0.0 317301 54361 317301.0 0.548139 0.548139 0.602953 0 0.158245
SRR3558189 HSPC_006_rep HSPC LMPP_broad LMPP LMPP_broad 335563.0 6270 0.0 335563 62426 335563.0 0.612579 0.612579 0.806794 0 0.147797
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
SRR3560099 Prog_848_rep Prog GMP_broad GMP GMP_broad 194009.0 5750 0.0 194009 39021 194009.0 0.340196 0.340196 0.453426 9 0.174135
SRR3560100 Prog_849_rep Prog CMP_broad CMP CMP_broad 240624.0 5787 0.0 240624 32157 240624.0 0.442644 0.442644 0.396637 6 0.084609
SRR3560101 Prog_850_rep Prog MEP_broad None MEP_broad 608044.0 7619 0.0 608044 41827 608044.0 0.868808 0.868808 0.641310 2 0.010177
SRR3560102 Prog_851_rep Prog CMP_broad CMP CMP_broad 323195.0 6473 0.0 323195 86099 323195.0 0.534781 0.534781 1.087060 6 0.129851
SRR3560103 Prog_852_rep Prog MEP_broad MEP MEP_broad 516834.0 7249 0.0 516834 35891 516834.0 0.788027 0.788027 0.523927 4 0.212272

1772 rows × 16 columns

Preprocessing#

adata_velo.obs_names[:5]

Index(['onefilepercell_SRR3556264Aligned_and_others_KPB9A:SRR3556264Aligned.out.bam',
       'onefilepercell_SRR3556264Aligned_and_others_KPB9A:SRR3556265Aligned.out.bam',
       'onefilepercell_SRR3556264Aligned_and_others_KPB9A:SRR3556266Aligned.out.bam',
       'onefilepercell_SRR3556264Aligned_and_others_KPB9A:SRR3556267Aligned.out.bam',
       'onefilepercell_SRR3556264Aligned_and_others_KPB9A:SRR3556268Aligned.out.bam'],
      dtype='object', name='CellID')

adata_velo.obs_names = [
    i.replace("onefilepercell_SRR3556264Aligned_and_others_KPB9A:", "") for i in adata_velo.obs_names
]
adata_velo.obs_names = [i.replace("Aligned.out.bam", "") for i in adata_velo.obs_names]

adata_velo = adata_velo[adata_p.obs_names].copy()

adata_velo.obs_names = adata_p.obs["cell_IDs"]
adata_velo.obs_names = [i.replace("_rep", "") for i in adata_velo.obs_names]

adata_velo.obs_names

Index(['HSPC_001', 'HSPC_002', 'HSPC_003', 'HSPC_004', 'HSPC_006', 'HSPC_008',
       'HSPC_009', 'HSPC_011', 'HSPC_012', 'HSPC_013',
       ...
       'Prog_843', 'Prog_844', 'Prog_845', 'Prog_846', 'Prog_847', 'Prog_848',
       'Prog_849', 'Prog_850', 'Prog_851', 'Prog_852'],
      dtype='object', length=1772)

adata_velo.var_names_make_unique()

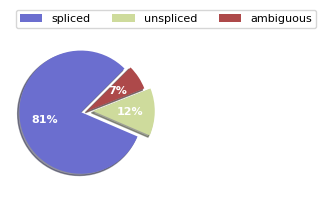

scv.pl.proportions(adata_velo)
../_images/e03c50cda00a2bc8aaff863654b1f6325bcef218886e55266c1b464171aa9201.png
scv.pp.filter_and_normalize(adata_velo, min_shared_counts=20, n_top_genes=3000)

Filtered out 18356 genes that are detected 20 counts (shared).
Normalized count data: X, spliced, unspliced.
Extracted 3000 highly variable genes.
Logarithmized X.

/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/scvelo/preprocessing/utils.py:705: DeprecationWarning: `log1p` is deprecated since scVelo v0.3.0 and will be removed in a future version. Please use `log1p` from `scanpy.pp` instead.
  log1p(adata)

adata_velo.obs_names = [i.replace("-", "_") for i in adata_velo.obs_names]

Processing Dataset#

adata_subset = adata_velo.copy()
## set annotation
adata_p.obs_names = adata_velo.obs_names
adata_subset.obs = adata_p.obs

print(adata_subset)

## Velocity pipeline
sc.tl.pca(adata_subset)
sc.pp.neighbors(adata_subset, n_neighbors=30, n_pcs=30)
scv.pp.moments(adata_subset)
adata_subset = preprocess_data(adata_subset, filter_on_r2=True)

if SAVE_DATA:
    adata_subset.write_h5ad(DATA_DIR / DATASET / "processed" / "mHSC_ExpressionData.h5ad")

AnnData object with n_obs × n_vars = 1772 × 3000
    obs: 'cell_IDs', 'cell_types_IDs', 'cell_types_broad', 'cell_types_fine', 'cell_types_broad_cleaned', 'n_counts', 'n_genes', 'mito_ratio', 'initial_size_spliced', 'initial_size_unspliced', 'initial_size', 'size_factors_x', 'size_factors_s', 'size_factors_u', 'leiden', 'velocity_self_transition'
    var: 'Accession', 'Chromosome', 'End', 'Start', 'Strand', 'gene_count_corr', 'means', 'dispersions', 'dispersions_norm', 'highly_variable'
    uns: 'log1p'
    layers: 'matrix', 'ambiguous', 'spanning', 'spliced', 'unspliced'
computing PCA
    with n_comps=50
    finished (0:00:02)
computing neighbors
    using 'X_pca' with n_pcs = 30

2025-10-25 11:03:55.896387: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
E0000 00:00:1761383037.019661 1275922 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered
E0000 00:00:1761383037.440171 1275922 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered

    finished (0:01:55)
computing moments based on connectivities
    finished (0:00:00) --> added
    'Ms' and 'Mu', moments of un/spliced abundances (adata.layers)
computing velocities
    finished (0:00:00) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
