Visualize regulon activity and expression dynamics

Library import

import decoupler as dc

import numpy as np
import pandas as pd

import matplotlib.pyplot as plt

import cellrank as cr
import scanpy as sc

from rgv_tools import DATA_DIR, FIG_DIR

General settings

plt.rcParams["svg.fonttype"] = "none"

Constants

DATASET = "zebrafish"

SAVE_DATA = True
SAVE_FIGURE = True
if SAVE_DATA:
    (DATA_DIR / DATASET / "processed").mkdir(parents=True, exist_ok=True)
if SAVE_FIGURE:
    (FIG_DIR / DATASET).mkdir(parents=True, exist_ok=True)

TERMINAL_STATES = [
    "mNC_head_mesenchymal",
    "mNC_arch2",
    "mNC_hox34",
    "Pigment",
]

genes = ["nr2f5", "sox9b", "twist1b", "ets1"]

Define functions

def min_max_scaling(data):
    """Compute min and max values for each feature."""
    min_vals = np.min(data, axis=0)
    max_vals = np.max(data, axis=0)

    # Perform min-max scaling
    scaled_data = (data - min_vals) / (max_vals - min_vals)

    return scaled_data

Data loading

adata = sc.read_h5ad(DATA_DIR / DATASET / "processed" / "adata_preprocessed.h5ad")

Calculate activity

regulons = (
    adata.uns["skeleton"]
    .copy()
    .reset_index()
    .melt(id_vars="index", var_name="target", value_name="weight")
    .rename(columns={"index": "source"})
)
regulons = regulons[regulons["weight"] != 0].reset_index(drop=True)

dc.mt.aucell(adata, layer="Ms", net=regulons, tmin=0)

activity = adata.obsm["score_aucell"].copy()

dc.mt.aucell(adata, layer="Ms", net=regulons, tmin=0, n_up=np.floor(988 * 0.50))  # considering the small regulon
activity_50 = adata.obsm["score_aucell"].copy()

connectivity = adata.uns["skeleton"].loc[activity.columns, :].sum(1)

activity_merge = []

for i in connectivity.index:
    if connectivity[i] < 50:  # if regulon gene less than 50, used top 50% genes
        activity_merge.append(activity_50[i])
    else:
        activity_merge.append(activity[i])

activity = adata.obsm["score_aucell"].copy()
activity = pd.DataFrame(np.array(activity_merge), index=connectivity.index, columns=activity.index)
adata.obsm["score_aucell"] = activity.T.copy()

activity = pd.DataFrame(np.zeros(adata.shape), index=adata.obs_names, columns=adata.var_names)
activity.loc[:, adata.obsm["score_aucell"].columns] = adata.obsm["score_aucell"].values.copy()

adata.layers["activity"] = np.array(activity)

GAM fitting

pk = cr.kernels.PseudotimeKernel(adata, time_key="latent_time").compute_transition_matrix()
estimator = cr.estimators.GPCCA(pk)

estimator.compute_macrostates(n_states=7, n_cells=30, cluster_key="cell_type")
estimator.set_terminal_states(TERMINAL_STATES)

estimator.compute_fate_probabilities()

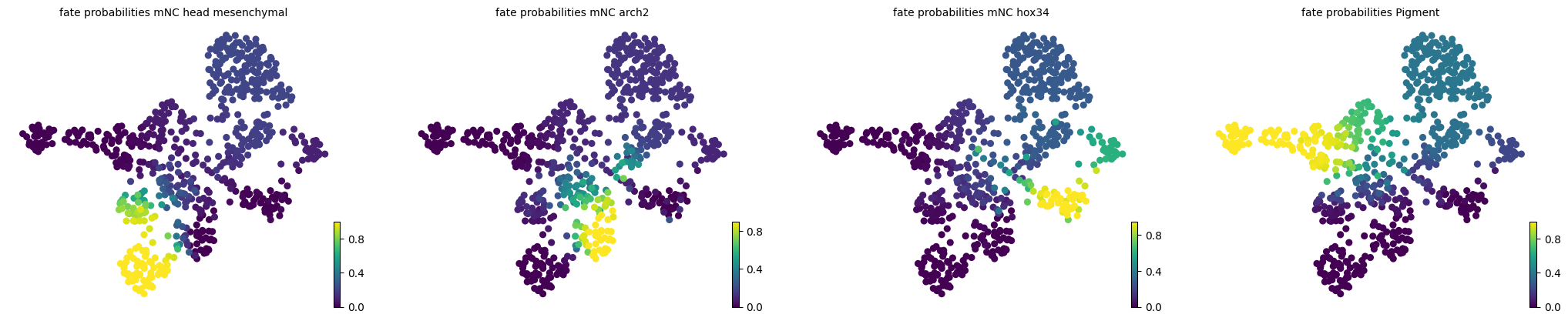

estimator.plot_fate_probabilities(same_plot=False)

2025-10-25 18:34:38 | [INFO] Using pre-computed Schur decomposition

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.
Abort(59) on node 0 (rank 0 in comm 0): application called MPI_Abort(MPI_COMM_WORLD, 59) - process 0

model = cr.models.GAMR(adata, n_knots=6, smoothing_penalty=10.0)

2025-10-25 18:35:11 | [INFO] cffi mode is CFFI_MODE.ANY
2025-10-25 18:35:11 | [INFO] R home found: /usr/lib64/R
2025-10-25 18:35:11 | [INFO] R library path: :/home/icb/weixu.wang/miniconda3/lib
2025-10-25 18:35:11 | [INFO] LD_LIBRARY_PATH: :/home/icb/weixu.wang/miniconda3/lib
2025-10-25 18:35:12 | [INFO] Default options to initialize R: rpy2, --quiet, --no-save
/home/icb/weixu.wang/miniconda3/envs/regvelo-py310/lib/python3.10/site-packages/rpy2/rinterface/__init__.py:1211: UserWarning: Environment variable "BASH_FUNC_which%%" redefined by R and overriding existing variable. Current: "() {  ( alias;
 eval ${which_declare} ) | /usr/bin/which --tty-only --read-alias --read-functions --show-tilde --show-dot $@
}", R: "() {  ( alias; eval ${which_declare} ) | /usr/bin/which --tty-only --read-alias --read-functions --show-tilde --show-dot $@}"
  warnings.warn(
sh: which: line 1: syntax error: unexpected end of file
sh: error importing function definition for `which'
sh: which: line 1: syntax error: unexpected end of file
sh: error importing function definition for `which'
/home/icb/weixu.wang/miniconda3/envs/regvelo-py310/lib/python3.10/site-packages/rpy2/rinterface/__init__.py:1211: UserWarning: Environment variable "R_SESSION_TMPDIR" redefined by R and overriding existing variable. Current: "/tmp/RtmpTkUncP", R: "/tmp/Rtmp4DJgTO"
  warnings.warn(
2025-10-25 18:35:14 | [INFO] R is already initialized. No need to initialize.

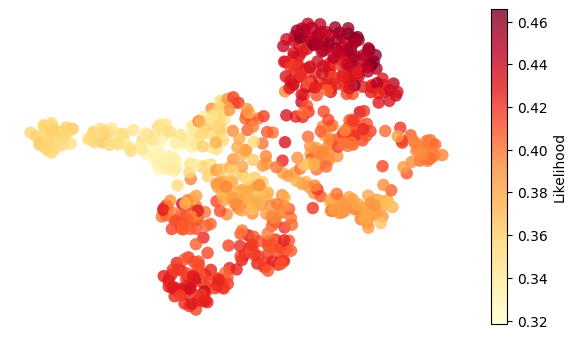

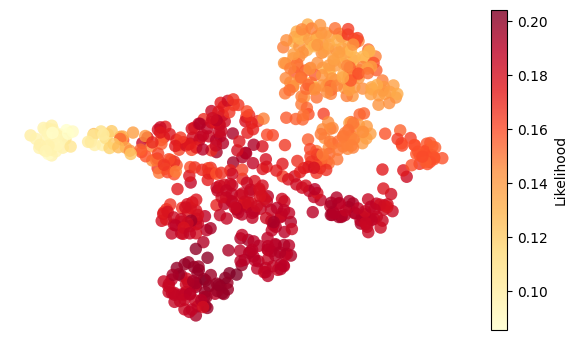

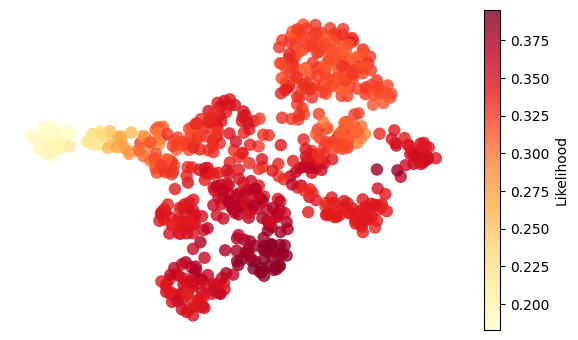

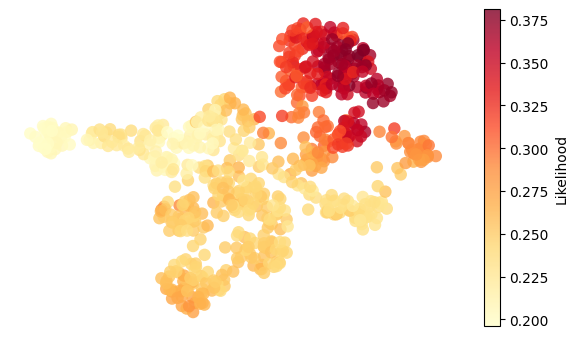

Visualize activity

for g in ["nr2f5", "twist1b", "sox9b", "ets1"]:
    adata.obs["activity"] = adata.obsm["score_aucell"][g]

    umap = adata.obsm["X_umap"]
    activity = adata.obs["activity"]

    fig, ax = plt.subplots(figsize=(6, 3.5))

    # Plot all cells colored by "likelihood"
    scc = ax.scatter(
        umap[:, 0],
        umap[:, 1],
        c=activity,
        cmap="YlOrRd",
        # s=20,
        edgecolors="none",
        alpha=0.8,
        s=80,
    )

    # Overlay highlighted cells (larger, outlined)

    # Add colorbar
    plt.colorbar(scc, ax=ax, label="Likelihood")

    ax.set_xlabel("UMAP1")
    ax.set_ylabel("UMAP2")
    ax.axis("off")
    plt.tight_layout()
    plt.show()

    if SAVE_FIGURE:
        fig.savefig(FIG_DIR / DATASET / f"{g}_activity.svg", format="svg", transparent=True, bbox_inches="tight")

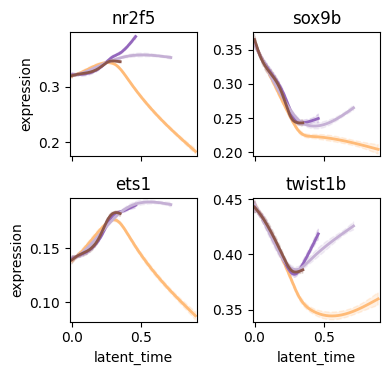

cr.pl.gene_trends(
    adata,
    model=model,
    data_key="activity",
    genes=["nr2f5", "sox9b", "ets1", "twist1b"],
    same_plot=True,
    ncols=2,
    time_key="latent_time",
    hide_cells=True,
    weight_threshold=(1e-3, 1e-3),
    figsize=(4, 4),
    legend_loc="none",
)

Plot regulatory circut dynamics

refit using velocity kernel

vk = cr.kernels.VelocityKernel(adata)
vk.compute_transition_matrix()
ck = cr.kernels.ConnectivityKernel(adata).compute_transition_matrix()

kernel = 0.8 * vk + 0.2 * ck

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

estimator = cr.estimators.GPCCA(kernel)
estimator.compute_macrostates(n_states=7, n_cells=30, cluster_key="cell_type")
estimator.set_terminal_states(TERMINAL_STATES)

2025-10-25 18:42:32 | [INFO] Using pre-computed Schur decomposition

GPCCA[kernel=(0.8 * VelocityKernel[n=697] + 0.2 * ConnectivityKernel[n=697]), initial_states=None, terminal_states=['Pigment', 'mNC_arch2', 'mNC_head_mesenchymal', 'mNC_hox34']]

estimator.compute_fate_probabilities()

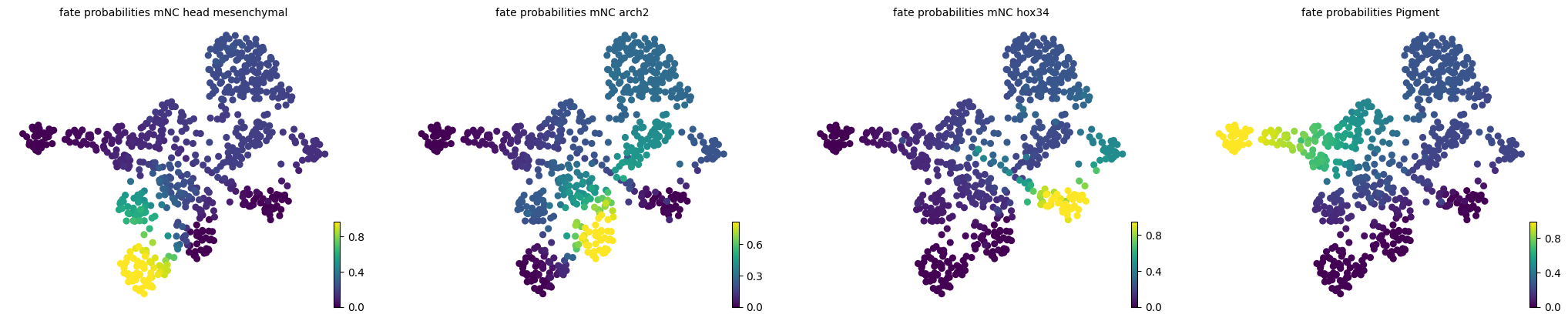

estimator.plot_fate_probabilities(same_plot=False)

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

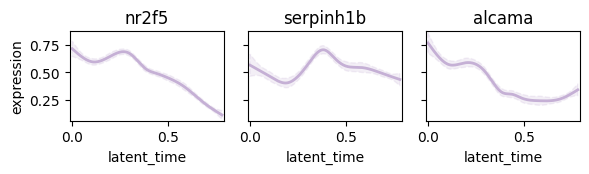

Plot following regulatory circut

- nr2f5 -> serpinh1b
- nr2f5 -> alcama

display = pd.DataFrame(np.zeros(adata.shape), index=adata.obs_names, columns=adata.var_names)
display.loc[:, "nr2f5"] = np.array(adata[:, "nr2f5"].layers["Ms"].reshape(-1))

display.loc[:, ["serpinh1b", "alcama"]] = np.array(adata[:, ["serpinh1b", "alcama"]].layers["Mu"])

adata.layers["display"] = np.array(display)

model = cr.models.GAMR(adata, n_knots=10, smoothing_penalty=10.0)

cr.pl.gene_trends(
    adata,
    model=model,
    lineages="mNC_head_mesenchymal",
    data_key="display",
    genes=["nr2f5", "serpinh1b", "alcama"],
    same_plot=True,
    ncols=3,
    time_key="latent_time",
    hide_cells=True,
    weight_threshold=(1e-3, 1e-3),
    legend_loc="none",
    sharey=True,
    figsize=(6, 2),
)

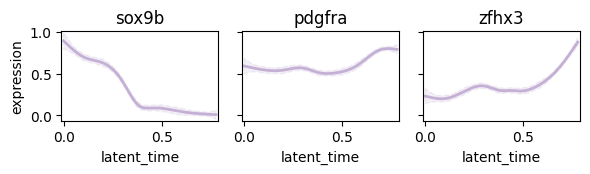

Plot following regulatory circut

- sox9b -> pdgfra
- sox9b -> zfhx3

display = pd.DataFrame(np.zeros(adata.shape), index=adata.obs_names, columns=adata.var_names)
display.loc[:, "sox9b"] = np.array(adata[:, "sox9b"].layers["Ms"].reshape(-1))

display.loc[:, ["pdgfra", "zfhx3"]] = np.array(adata[:, ["pdgfra", "zfhx3"]].layers["Mu"])

adata.layers["display"] = np.array(display)

cr.pl.gene_trends(
    adata,
    model=model,
    lineages="mNC_head_mesenchymal",
    data_key="display",
    genes=["sox9b", "pdgfra", "zfhx3"],
    same_plot=True,
    ncols=3,
    time_key="latent_time",
    hide_cells=True,
    weight_threshold=(1e-3, 1e-3),
    legend_loc="none",
    sharey=True,
    figsize=(6, 2),
)

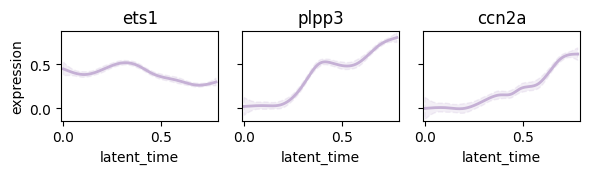

Plot following regulatory circut

- ets1 -> plpp3
- ets1 -> ccn2a

display = pd.DataFrame(np.zeros(adata.shape), index=adata.obs_names, columns=adata.var_names)
display.loc[:, "ets1"] = np.array(adata[:, "ets1"].layers["Ms"].reshape(-1))

display.loc[:, ["plpp3", "ccn2a"]] = np.array(adata[:, ["plpp3", "ccn2a"]].layers["Mu"])

adata.layers["display"] = np.array(display)

cr.pl.gene_trends(
    adata,
    model=model,
    lineages="mNC_head_mesenchymal",
    data_key="display",
    genes=["ets1", "plpp3", "ccn2a"],
    same_plot=True,
    ncols=3,
    time_key="latent_time",
    hide_cells=True,
    weight_threshold=(1e-3, 1e-3),
    legend_loc="none",
    sharey=True,
    figsize=(6, 2),
)

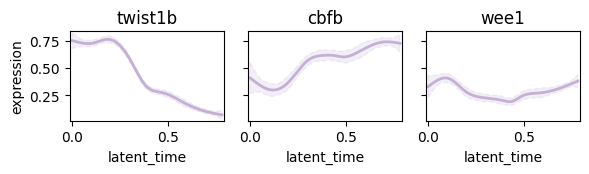

Plot following regulatory circut

- twist1b -> cbfb
- twist1b -> wee1

display = pd.DataFrame(np.zeros(adata.shape), index=adata.obs_names, columns=adata.var_names)
display.loc[:, "twist1b"] = np.array(adata[:, "twist1b"].layers["Ms"].reshape(-1))

display.loc[:, ["cbfb", "wee1"]] = np.array(adata[:, ["cbfb", "wee1"]].layers["Mu"])

adata.layers["display"] = np.array(display)

cr.pl.gene_trends(
    adata,
    model=model,
    lineages="mNC_head_mesenchymal",
    data_key="display",
    genes=["twist1b", "cbfb", "wee1"],
    same_plot=True,
    ncols=3,
    time_key="latent_time",
    hide_cells=True,
    weight_threshold=(1e-3, 1e-3),
    legend_loc="none",
    sharey=True,
    figsize=(6, 2),
)
