Benchmark Terminal State Identification#

import numpy as np
import pandas as pd
from scipy.stats import ttest_ind

import matplotlib.pyplot as plt
import mplscience
import seaborn as sns

import cellrank as cr
import scanpy as sc
import scvelo as scv
import scvi

from rgv_tools import DATA_DIR, FIG_DIR
from rgv_tools.benchmarking import get_tsi_score
from rgv_tools.plotting._significance import add_significance, get_significance

/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_csv from `anndata` is deprecated. Import anndata.io.read_csv instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_excel from `anndata` is deprecated. Import anndata.io.read_excel instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_hdf from `anndata` is deprecated. Import anndata.io.read_hdf instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_loom from `anndata` is deprecated. Import anndata.io.read_loom instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_mtx from `anndata` is deprecated. Import anndata.io.read_mtx instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_text from `anndata` is deprecated. Import anndata.io.read_text instead.
  warnings.warn(msg, FutureWarning)
/home/icb/weixu.wang/miniconda3/envs/regvelo_test/lib/python3.10/site-packages/anndata/utils.py:429: FutureWarning: Importing read_umi_tools from `anndata` is deprecated. Import anndata.io.read_umi_tools instead.
  warnings.warn(msg, FutureWarning)

General setting#

scvi.settings.seed = 0

[rank: 0] Seed set to 0

plt.rcParams["svg.fonttype"] = "none"
sns.reset_defaults()
sns.reset_orig()
scv.settings.set_figure_params("scvelo", dpi_save=400, dpi=80, transparent=True, fontsize=14, color_map="viridis")

Constants#

DATASET = "scale_murine"

SAVE_FIGURES = True
if SAVE_FIGURES:
    (FIG_DIR / DATASET).mkdir(parents=True, exist_ok=True)

FIGURE_FORMATE = "svg"

VELOCITY_METHODS = ["regvelo", "scvelo", "velovi"]

TERMINAL_STATE = [
    "Melanocytes",
    "enFib",
    "SC",
    "Mesenchyme",
    "Sensory",
    "ChC",
    "SatGlia",
    "Gut_glia",
    "Gut_neuron",
    "Symp",
    "BCC",
]

thresholds = np.linspace(0.1, 1, 21)[:20]

Compute TSI#

tsi_scale = []
for scale_level in range(2, 6):
    ks = {}

    g = []
    for method in VELOCITY_METHODS:
        adata = sc.read_h5ad(
            DATA_DIR / DATASET / "processed" / f"adata_run_stage_{scale_level}_{method}_all_regulons.h5ad"
        )
        g.append(adata.shape[0])
        ## construct graph
        vk = cr.kernels.VelocityKernel(adata).compute_transition_matrix()
        ck = cr.kernels.ConnectivityKernel(adata).compute_transition_matrix()
        ks[method] = 0.8 * vk + 0.2 * ck

    estimators = {}
    tsi = {}

    num_max_states = 10
    if scale_level == 5:
        num_max_states = 15

    for method in VELOCITY_METHODS:
        estimators[method] = cr.estimators.GPCCA(ks[method])
        tsi[method] = get_tsi_score(
            adata,
            thresholds,
            "assignments",
            set(adata.obs["assignments"].unique().tolist()).intersection(TERMINAL_STATE),
            estimators[method],
            max_states=num_max_states,
        )

    tsi_scale.append(tsi)

WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=6` because it will split complex conjugate eigenvalues. Using `n_states=7`
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=9` because it will split complex conjugate eigenvalues. Using `n_states=10`

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.
Abort(59) on node 0 (rank 0 in comm 0): application called MPI_Abort(MPI_COMM_WORLD, 59) - process 0

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.
Abort(59) on node 0 (rank 0 in comm 0): application called MPI_Abort(MPI_COMM_WORLD, 59) - process 0

WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.

[0]PETSC ERROR: ------------------------------------------------------------------------
[0]PETSC ERROR: Caught signal number 13 Broken Pipe: Likely while reading or writing to a socket
[0]PETSC ERROR: Try option -start_in_debugger or -on_error_attach_debugger
[0]PETSC ERROR: or see https://petsc.org/release/faq/#valgrind and https://petsc.org/release/faq/
[0]PETSC ERROR: configure using --with-debugging=yes, recompile, link, and run
[0]PETSC ERROR: to get more information on the crash.
Abort(59) on node 0 (rank 0 in comm 0): application called MPI_Abort(MPI_COMM_WORLD, 59) - process 0

WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state

WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Requested more macrostates `10` than available Schur vectors `9`. Recomputing the decomposition
WARNING: Requested more macrostates `11` than available Schur vectors `10`. Recomputing the decomposition
WARNING: Requested more macrostates `12` than available Schur vectors `11`. Recomputing the decomposition
WARNING: Requested more macrostates `13` than available Schur vectors `12`. Recomputing the decomposition
WARNING: Requested more macrostates `14` than available Schur vectors `13`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Requested more macrostates `9` than available Schur vectors `8`. Recomputing the decomposition
WARNING: Requested more macrostates `10` than available Schur vectors `9`. Recomputing the decomposition
WARNING: Requested more macrostates `11` than available Schur vectors `10`. Recomputing the decomposition
WARNING: Requested more macrostates `12` than available Schur vectors `11`. Recomputing the decomposition
WARNING: Requested more macrostates `13` than available Schur vectors `12`. Recomputing the decomposition
WARNING: Requested more macrostates `14` than available Schur vectors `13`. Recomputing the decomposition
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Requested more macrostates `3` than available Schur vectors `2`. Recomputing the decomposition
WARNING: Requested more macrostates `4` than available Schur vectors `3`. Recomputing the decomposition
WARNING: Requested more macrostates `5` than available Schur vectors `4`. Recomputing the decomposition
WARNING: Requested more macrostates `6` than available Schur vectors `5`. Recomputing the decomposition
WARNING: Requested more macrostates `7` than available Schur vectors `6`. Recomputing the decomposition
WARNING: Requested more macrostates `8` than available Schur vectors `7`. Recomputing the decomposition
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Requested more macrostates `10` than available Schur vectors `9`. Recomputing the decomposition
WARNING: Requested more macrostates `11` than available Schur vectors `10`. Recomputing the decomposition
WARNING: Requested more macrostates `12` than available Schur vectors `11`. Recomputing the decomposition
WARNING: Requested more macrostates `13` than available Schur vectors `12`. Recomputing the decomposition
WARNING: Requested more macrostates `14` than available Schur vectors `13`. Recomputing the decomposition
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`
WARNING: Found only one macrostate, making it the singular terminal state
WARNING: Unable to compute macrostates with `n_states=8` because it will split complex conjugate eigenvalues. Using `n_states=9`
WARNING: Unable to compute macrostates with `n_states=14` because it will split complex conjugate eigenvalues. Using `n_states=15`

Plot TSI benchmark on each scale#

for scale_level in range(4):
    tsi = tsi_scale[scale_level]

    df = pd.DataFrame(
        {
            "TSI": tsi["regvelo"] + tsi["velovi"] + tsi["scvelo"],
            "Model": ["RegVelo"] * 20 + ["veloVI"] * 20 + ["scVelo"] * 20,
        }
    )

    with mplscience.style_context():
        sns.set_style(style="whitegrid")
        fig, ax = plt.subplots(figsize=(3, 4))

        sns.barplot(data=df, x="Model", y="TSI", palette="colorblind", ax=ax)

        # Add jittered dots
        sns.stripplot(data=df, x="Model", y="TSI", color="black", jitter=True, dodge=True, ax=ax, alpha=0.6, size=4)

        ttest_res = ttest_ind(tsi["regvelo"], tsi["velovi"], alternative="greater")
        significance = get_significance(ttest_res.pvalue)
        significance_vv = ttest_res.pvalue

        add_significance(
            ax=ax,
            left=0,
            right=1,
            significance=significance,
            lw=1,
            bracket_level=1.05,
            c="k",
            level=0,
        )

        ttest_res = ttest_ind(tsi["regvelo"], tsi["scvelo"], alternative="greater")
        significance = get_significance(ttest_res.pvalue)
        significance_sv = ttest_res.pvalue

        add_significance(ax=ax, left=0, right=2, significance=significance, lw=1, c="k", level=2, bracket_level=0.9)

        y_min, y_max = ax.get_ylim()
        ax.set_ylim([y_min, y_max + 0.02])
        print("velovi:" + str(significance_vv) + " " + "scvelo:" + str(significance_sv))
        # if SAVE_FIGURES:
        #    fig.savefig(FIG_DIR / DATASET / f"tsi_benchmark_stage_{scale_level}_all_regulons.svg", format="svg", transparent=True, bbox_inches="tight")
        plt.show()

velovi:7.827229644930834e-14 scvelo:1.9725858953433486e-59

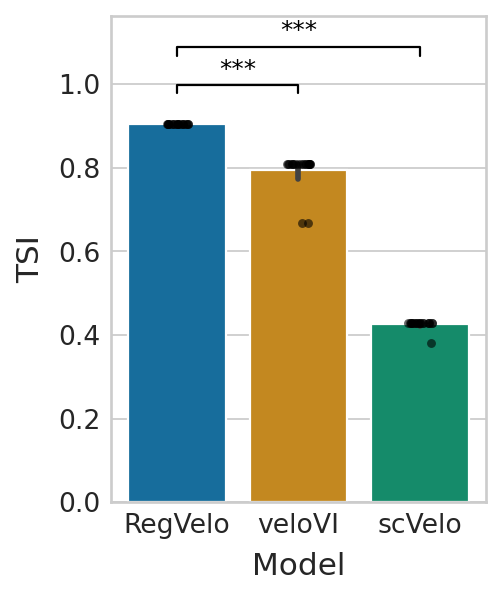

../_images/14be309ab17d677509ec5f43f7c7ca3daedbf1f264dfa0ae1dddb83fe5c540dd.png

velovi:0.0 scvelo:0.0

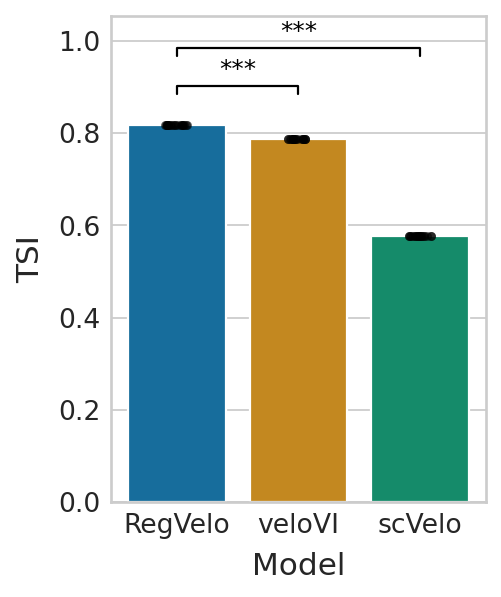

../_images/1120ecfc6b660db38a64759eb9ed6bdc0eb23b0e12f05495c9e2f262f89931a2.png

velovi:0.0 scvelo:0.0

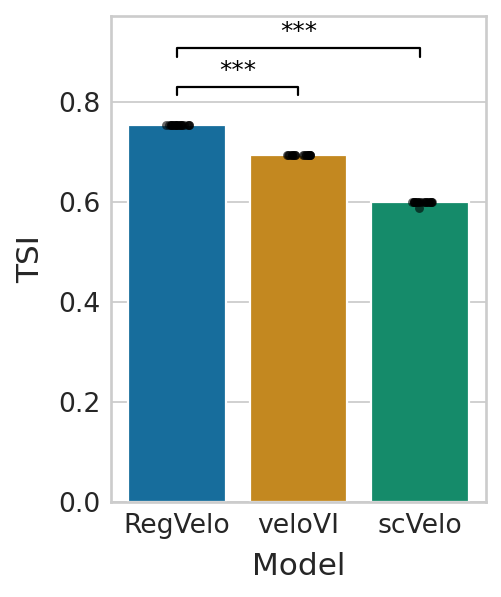

../_images/2a6acbaf40c86b6df7314ec31f6dac15304bd5ff321d7346e7159fd349231921.png

velovi:0.0 scvelo:9.71010180139941e-64

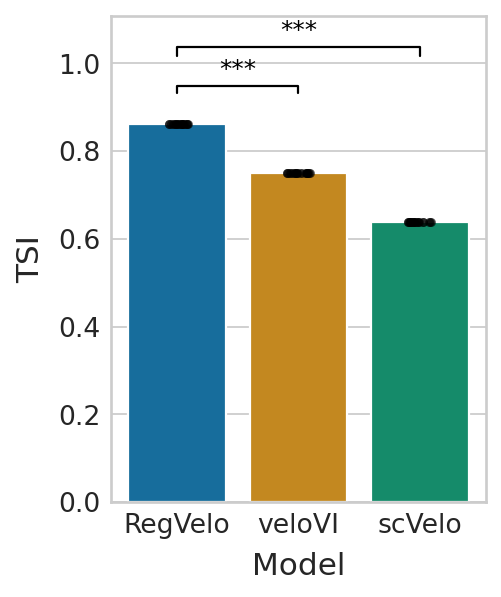

../_images/1d9591d5ac3bb90dc7b1118d9db6f79b52795171fc0b30fb094c9664db8d329d.png

df_all = []
for i in range(4):
    tsi = tsi_scale[i]

    df = pd.DataFrame(
        {
            "TSI": tsi["regvelo"] + tsi["velovi"] + tsi["scvelo"],
            "Model": ["RegVelo"] * 20 + ["veloVI"] * 20 + ["scVelo"] * 20,
        }
    )

    df["scale"] = str(i + 1)
    df_all.append(df)

df = pd.concat(df_all, axis=0)
df

	TSI	Model	scale
0	0.904762	RegVelo	1
1	0.904762	RegVelo	1
2	0.904762	RegVelo	1
3	0.904762	RegVelo	1
4	0.904762	RegVelo	1
...	...	...	...
55	0.600000	scVelo	4
56	0.600000	scVelo	4
57	0.600000	scVelo	4
58	0.600000	scVelo	4
59	0.588235	scVelo	4

240 rows × 3 columns

with mplscience.style_context():
    sns.set_style(style="whitegrid")
    fig, ax = plt.subplots(figsize=(6, 2.5))

    # Plot the barplot without error bars

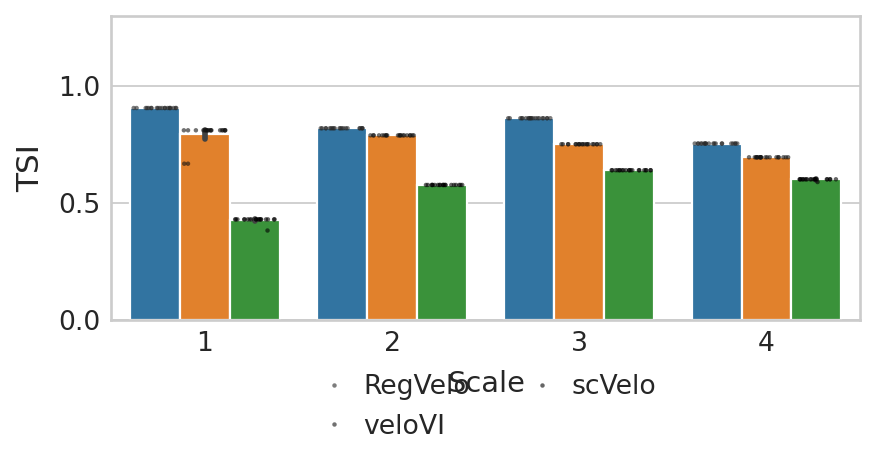

    sns.barplot(data=df, x="scale", y="TSI", hue="Model", ax=ax)

    # Add jittered dots
    sns.stripplot(
        data=df, x="scale", y="TSI", hue="Model", dodge=True, color="black", ax=ax, jitter=0.35, size=2, alpha=0.6
    )

    # Remove the duplicate legend
    handles, labels = ax.get_legend_handles_labels()
    ax.legend(handles[3:6], labels[3:6], bbox_to_anchor=(0.5, -0.1), loc="upper center", ncol=2)

    # Customize labels and other settings
    ax.set(xlabel="", ylabel="TSI")
    ax.set_xlabel(xlabel="Scale", fontsize=13)
    ax.set_ylim(0, 1.3)

    if SAVE_FIGURES:
        plt.savefig(FIG_DIR / DATASET / "tsi_benchmark.svg", format="svg", transparent=True, bbox_inches="tight")
    plt.show()

../_images/c9153571db01f076497b4a8cdd33e25d42c2ce3d7c9ac0ec9a1822b2a71db585.png
